Low Pressure Delivery Pipe
- Release the residual pressure in fuel line.
Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

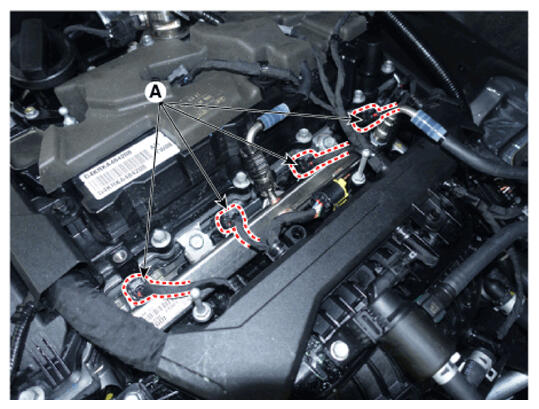

- Disconnect the injector connector (A).

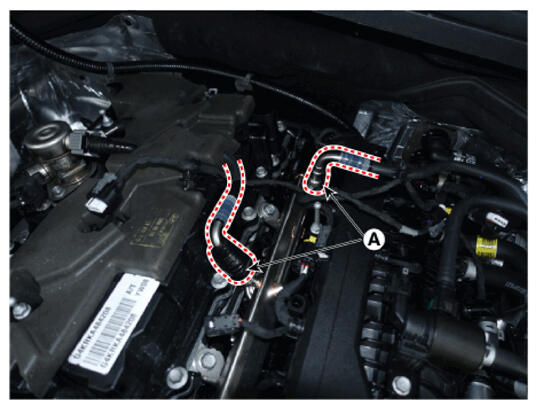

- Disconnect the fuel feed quick-connectors (A).NOTE:

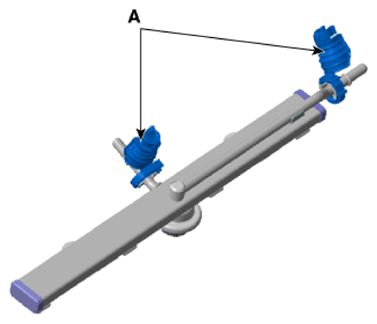

- Open the clamp cover (A) before disconnect the quick connector. (If the clip is applied)

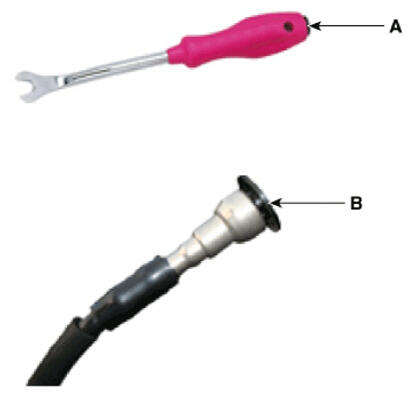

NOTE:- When removing the quick-connnector with the clip removing tool (A), be careful not to damage the plastic clip (B).
- If the clip is damaged, fuel line leak can be occurred due to a bad connection.

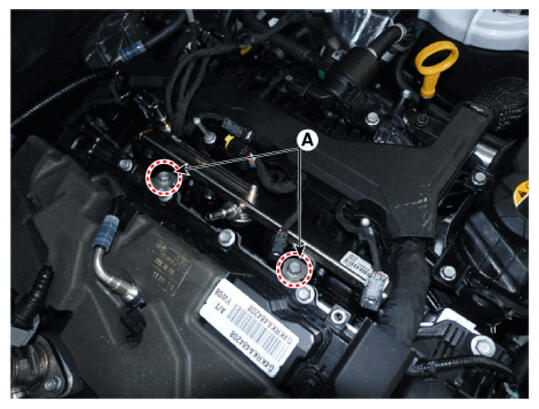

- Remove the delivery pipe mounting bolts (A).
Tightening torque:
18.7 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.8 - 17.3 lb.ft)

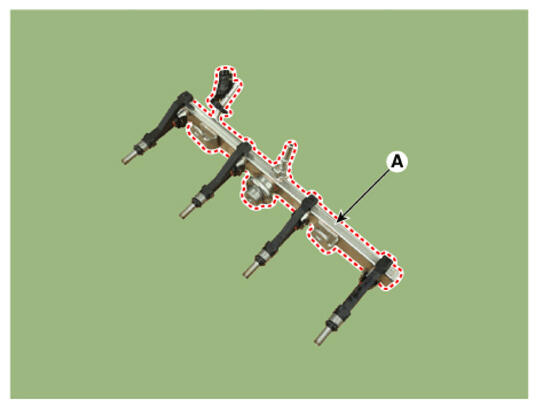

- Remove the injector from the delivery pipe (A) after releasing the fixing clip.
