Front Oil Seal: Replacement

  1. Remove the drive bolt, and then remove the crankshaft damper pulley.

    (Refer to Drive Belt System - "CRANKSHAFT DAMPER PULLEY ")

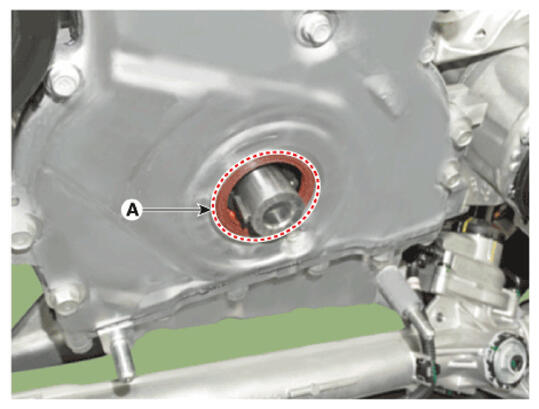

  2. Remove the front oil seal (A).
    G16846303Courtesy of HYUNDAI MOTOR AMERICA
  3. Apply engine oil on the edge of new oil seal.
    NOTE:
    • Do not reuse the front oil seal.
  4. Install the new front oil seal.
    NOTE:
    • Remove any foreign substances from the lip portion of the oil seal.

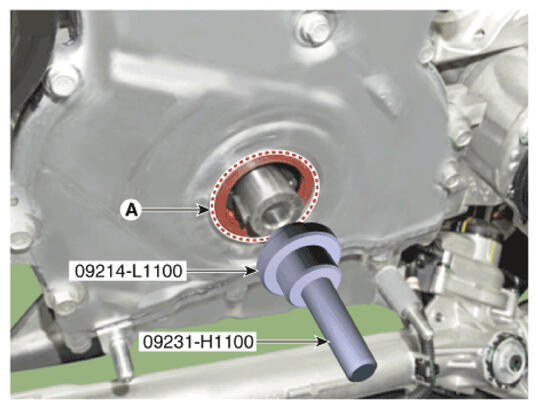

  5. Use SST (09214-L1100, 09231-H1100) and a rubber mallet to lightly tap and install the newfront oil seal (A).
    G16846304Courtesy of HYUNDAI MOTOR AMERICA
