Front Muffler

Remove the engine under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

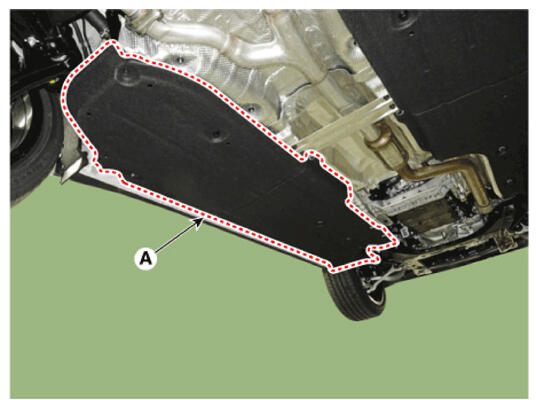

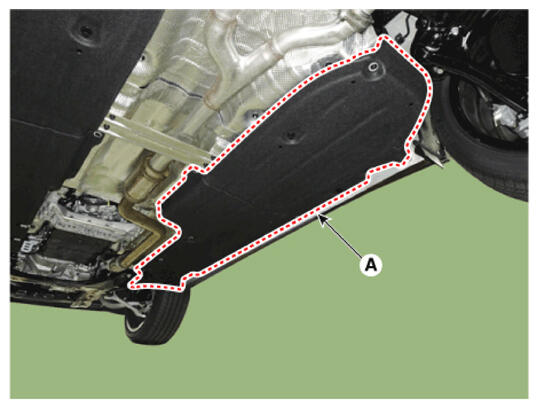

Remove the side under cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

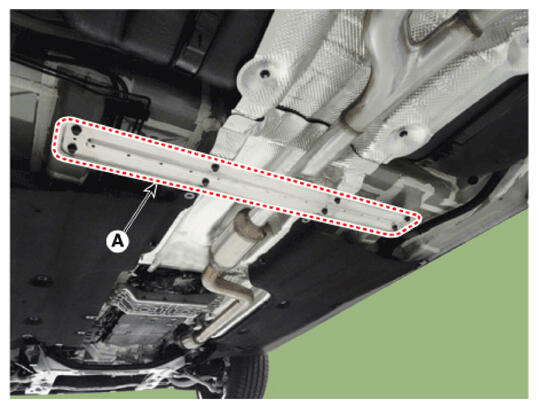

Remove the front & center muffler stay (A).
Tightening torque: 29.4 - 39.2 N.m (3.0 - 4.0 kgf.m, 21.7 - 28.9 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

Remove the front muffler.

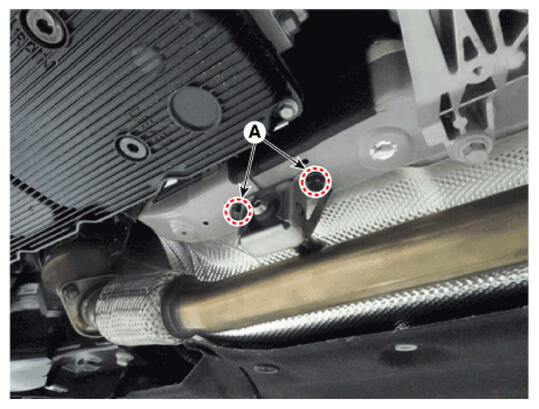

Remove the muffler hanger mounting bolt (A).

Tightening torque: 29.4 - 39.2 N.m (3.0 - 4.0 kgf.m, 21.7 - 28.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

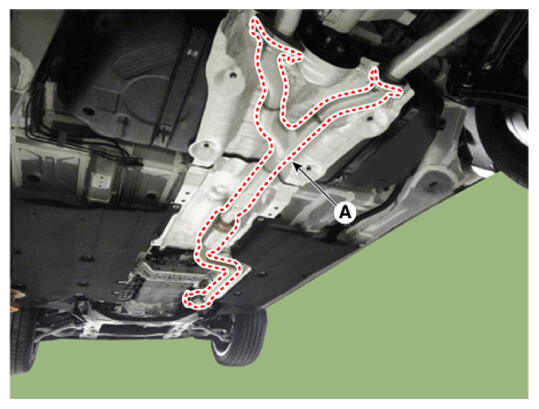

Remove the front muffler (A).

Tightening torque: 39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Install in the reverse order of removal.
NOTE:
- When installing, replace with new gaskets.
