Air Cleaner Element

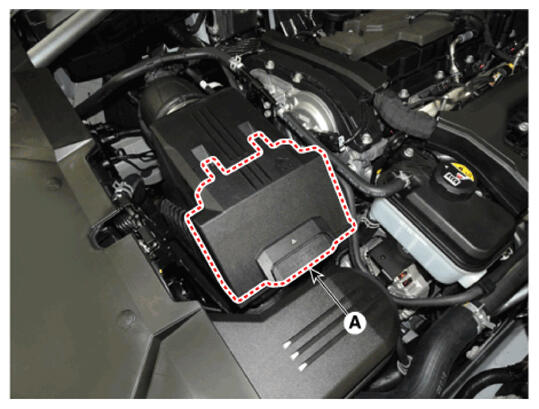

Open the air cleaner element cover (A)

Courtesy of HYUNDAI MOTOR AMERICA
Unlock the air cleaner element camshaft (A) by turning in the direction of arrow.

Courtesy of HYUNDAI MOTOR AMERICA

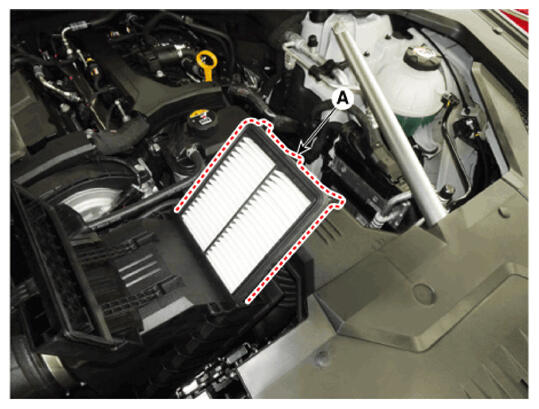

Replace the air cleaner element (A) with a new one.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- If there is any foreign substance inside the air cleaner assembly, clean the inside and replace the air cleaner element.
- When cleaning the inside, be careful not to allow foreign substances to enter the air hose.

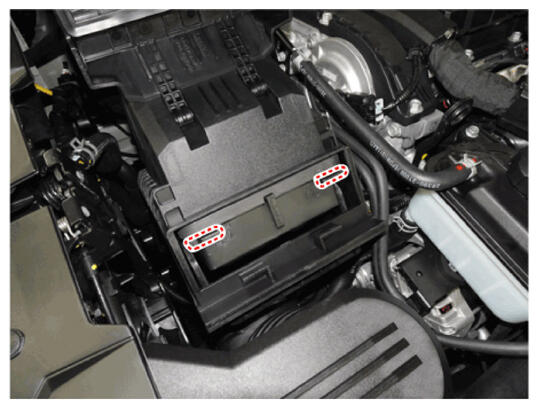

Fully insert the element into the air cleaner and then close the element cover after turning the levers to "LOCK" position.
