Air Cleaner Assembly

  1. Disconnect the battery negative terminal.
  2. Remove the engine room cover.

    (Refer to the Engine And Transmission Assembly - "ENGINE COVER ")

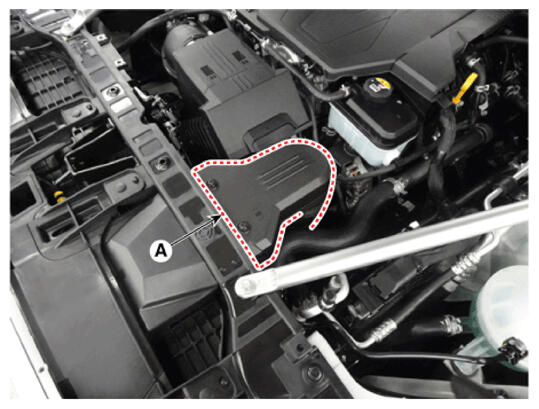

  3. Remove the air duct (A).

    Tightening torque:  3.9 - 7.8 N.m (0.4 - 0.8 kgf.m, 2.9 - 5.8 lb-ft)

    G16846613Courtesy of HYUNDAI MOTOR AMERICA

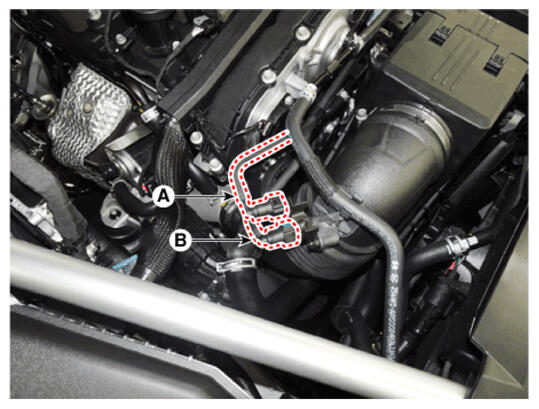

    1. Disconnect the vacuum hose (A, B).

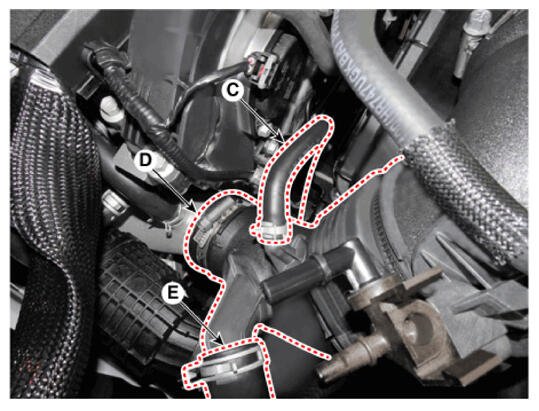

    2. Disconnect the breather hose (C).
    3. Disconnect the air intake hose (D).
    4. Disconnect the RCV hose (E).
      G16846614Courtesy of HYUNDAI MOTOR AMERICA
      G16846615Courtesy of HYUNDAI MOTOR AMERICA

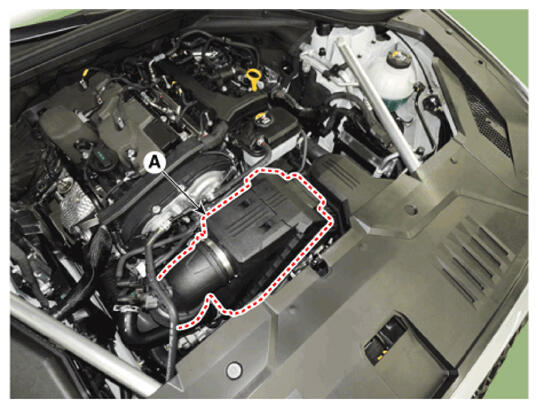

    5. Remove the air cleaner assembly (A).
      G16846616Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
