Drive Belt: Removal

  1. Remove the water cooled intercooler.

    (Refer to Intake And Exhaust System - "WATER COOLED INTERCOOLER ")

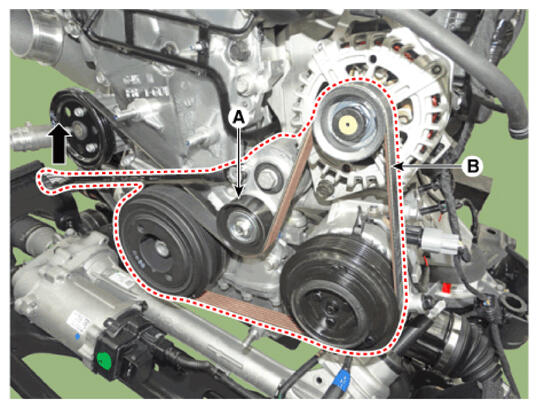

  2. For release the tension, turn the drive belt tensioner (A) clockwise then remove the drive belt (B).
    G16846294Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the water pump belt.

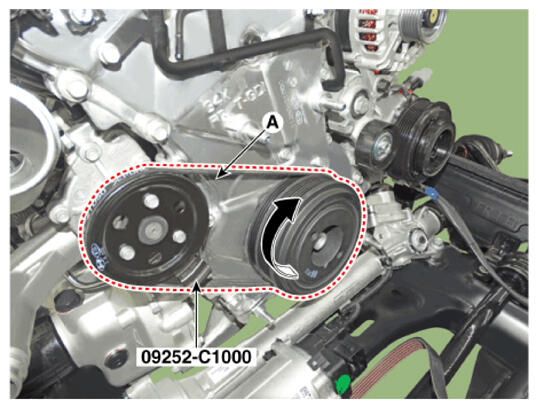

    1. Insert the SST (09252-C1000) between the water pump pulley and the water pump belt.
    2. Remove the water pump belt (A) by turning the damper pulley clockwise.
      G16846295Courtesy of HYUNDAI MOTOR AMERICA
