Drive Belt: Installation

  1. Install the water pump belt.

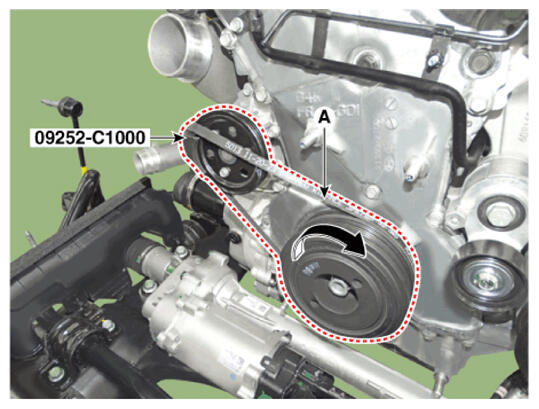

    1. Insert the SST (09252-C1000) between the water pump pulley and the water pump belt.
    2. Install the water pump belt (A) by turning the damper pulley clockwise.
      G16846296Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Install the water pump belt while being careful not to damage the water pump belt caused by water pump pulley mounting bolt.

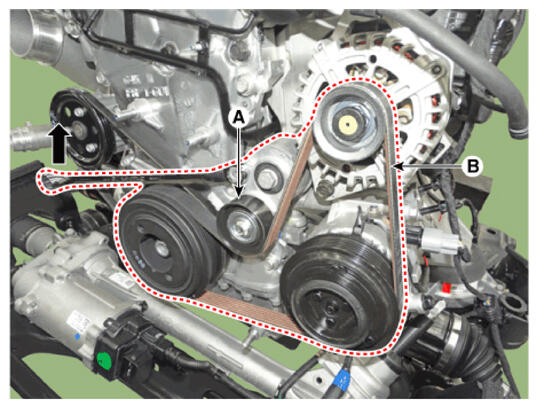

  2. For release the tension, turn the drive belt tensioner (A) clockwise then install the drive belt (B).
    G16846297Courtesy of HYUNDAI MOTOR AMERICA
  3. Installation is reverse order of removal.
