Drive Belt: Inspection

Visually check the belt for excessive wear, frayed cords etc. If any defect has been found, replace the drive belt.

NOTE:

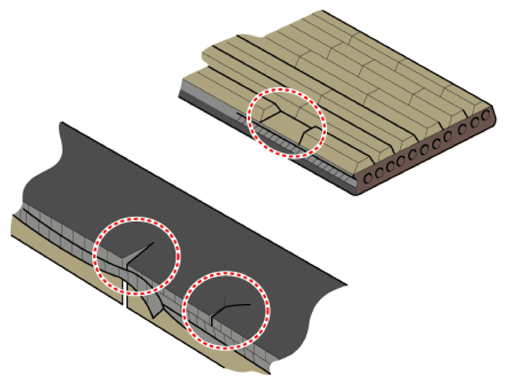

Cracks on the rib side of a belt are considered acceptable. If the belt has chunks missing from the ribs, it should be replaced.

Courtesy of HYUNDAI MOTOR AMERICA
