Components And Components Location: Components

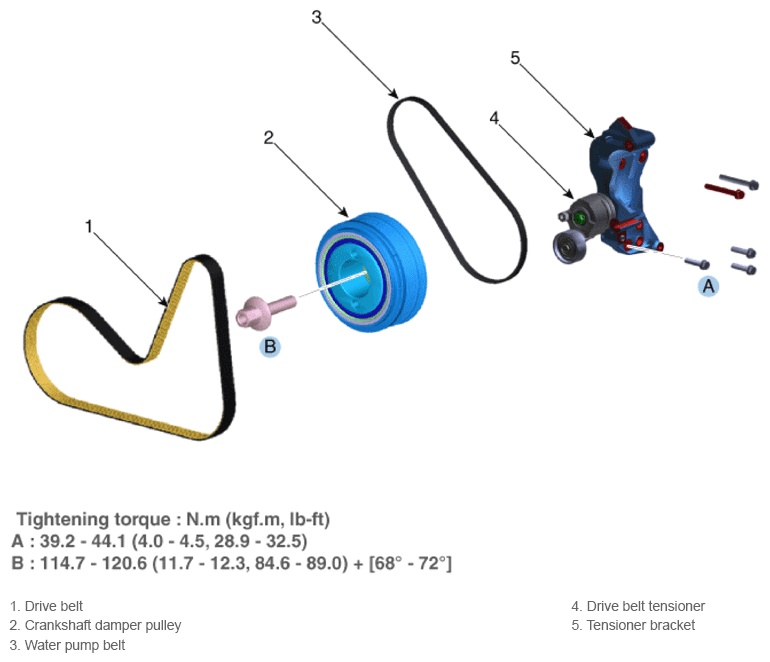

Fig 1: Drive Belt System Components Location With Torque Specifications

G16846293

Courtesy of HYUNDAI MOTOR AMERICA
