Cylinder Head: Reassembly: Assembly

NOTE:
  • Thoroughly clean all parts to be assembled.
  • Before installing the parts, apply fresh engine oil to all sliding and rotating surfaces.
  • Always use new valve stem seals.
  1. Install the valve.
    1. After applying engine oil to the valve stem seal, install new valve stem seal (E) by using the SST (09222-4A000).
      NOTE:
      • Always use new valve stem seals.
      • Incorrect installation of the seal could result in oil leakage through the valve guides.
    2. Apply engine oil to the entire outer circumferential surface of each valve stem and insert valve (D) into the valve guide.
    3. Install the valve spring (C).
    4. Install the spring retainer (B).
      G16846431Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Be careful not to change the position of the intake valve and exhaust valve.

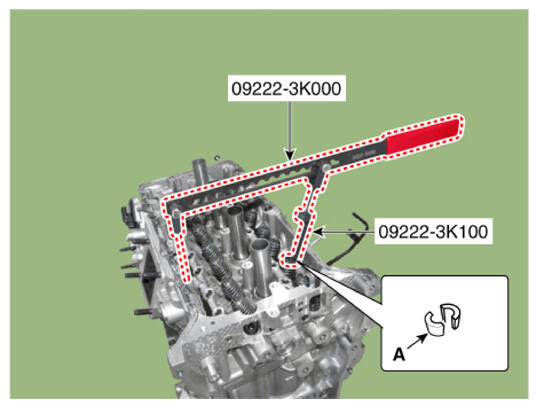

    5. Using the SST (09222-3K000, 09222-3K100), compress the valve spring and install the valve spring retainer locks (A).
      G16846432Courtesy of HYUNDAI MOTOR AMERICA
