Cylinder Head Cover: Removal

NOTE:

Use fender covers to avoid damaging painted surfaces.
To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

Information

Disconnect the battery negative terminal.
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")

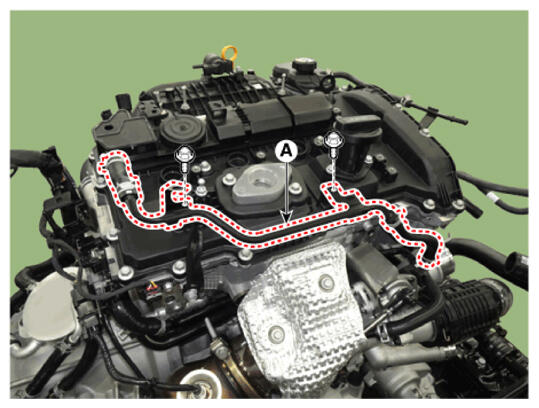

Disconnect the wiring connectors and harness clamps and remove the connector bracket and wiring protector around the cylinder head cover.

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the cylinder head cover sound absorption cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the high pressure fuel hose, high pressure fuel pipe and high pressure fuel pump.
(Refer to Engine Control/Fuel System - "HIGH PRESSURE FUEL PUMP ")

Courtesy of HYUNDAI MOTOR AMERICA
Remove the ignition coils.
(Refer to Engine Electrical System - "IGNITION COIL ")
Disconnect the breather hose (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the cylinder head cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

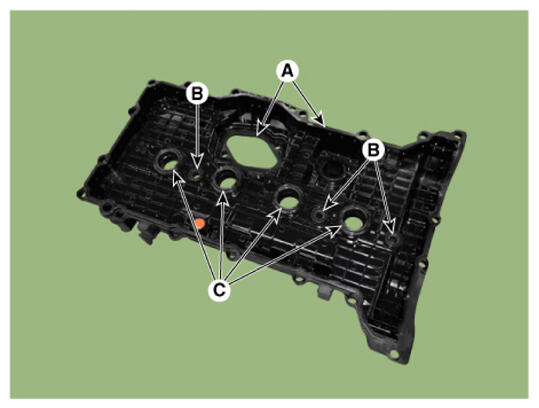

Remove the cylinder head cover gasket (A), center bolt gasket (B), plug hole seal (C).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Always use a new cylinder head cover gasket.
