Home >> Genesis >> 2024 >> GV70 2.5T >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Cylinder Head Assembly - 2.5L >> Components And Components Location >> Components

Components And Components Location: Components

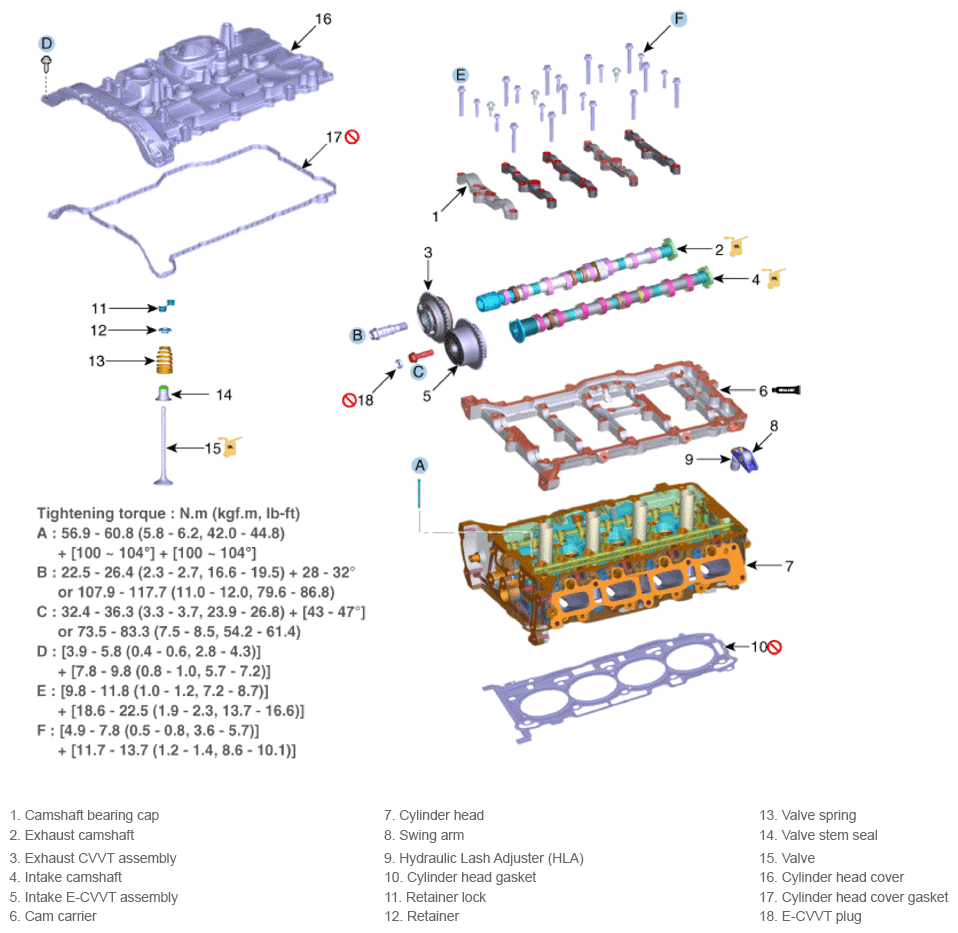

Fig 1: Cylinder Head Assembly Components Location With Torque Specifications

G16846353

Courtesy of HYUNDAI MOTOR AMERICA
