CVVT and Camshaft

Remove the timing chain.
(Refer to Timing System - "TIMING CHAIN ")

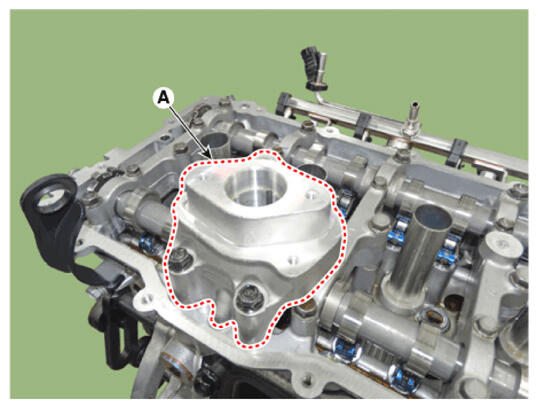

Remove the high pressure fuel pump bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA

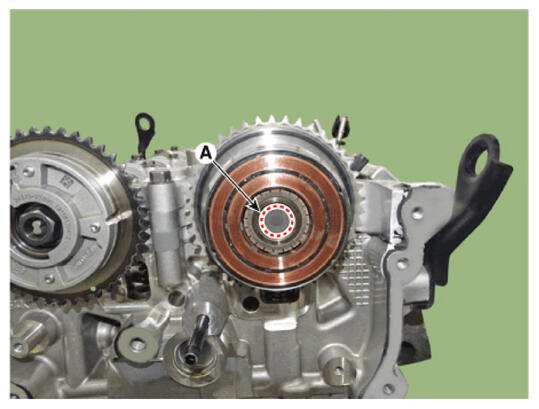

Remove it by breaking the center of E-CVVT motor plug (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Remove after 30 minutes of switching "OFF" the ignition to drain out the oil inside the E-CVVT motor plug.
- Do not tilt the front of engine (timing chain cover side) downward as residual oil may flow out during E-CVVT motor plug removal.
- If oil flows out during E-CVVT motor plug removal, wipe off immediately and block the motorshaft inlet with a clean towel.

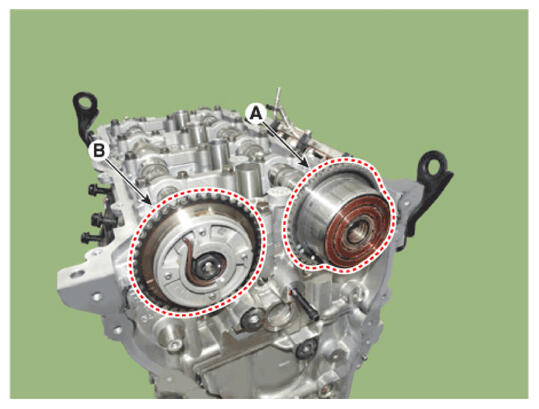

Remove the intake E-CVVT assembly (A) and exhaust CVVT assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:

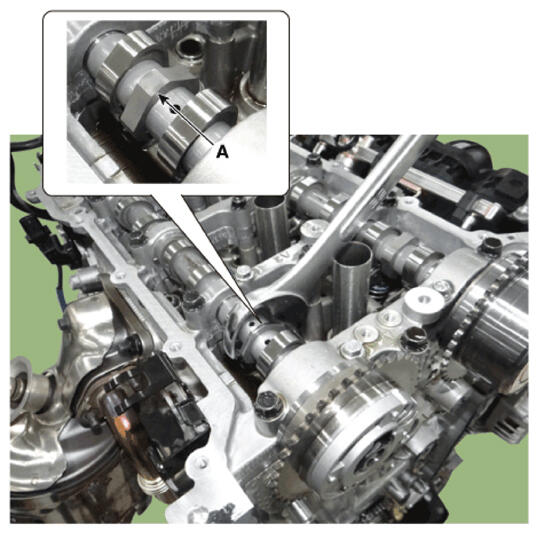

- When removing the CVVT assembly bolt, hold the camshaft (A) with a wrench to prevent the camshaft from rotating.
Courtesy of HYUNDAI MOTOR AMERICA

Remove the Camshaft.

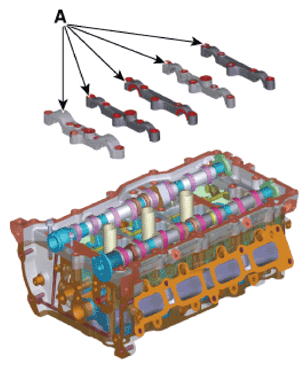

Remove the Camshaft bearing cap (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Be careful not to change the position and direction of the camshaft bearing caps.

NOTE:

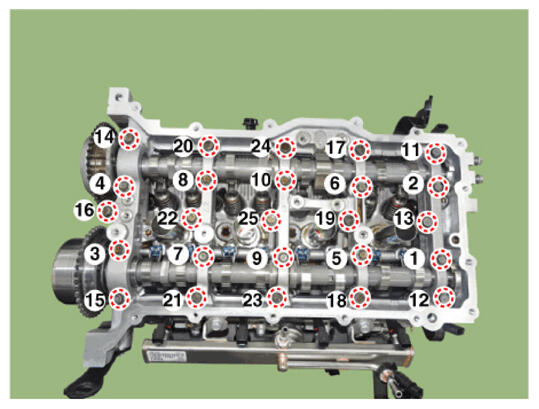

Fig 1: Camshaft Bearing Caps Bolts Loosening Sequence

Courtesy of HYUNDAI MOTOR AMERICA

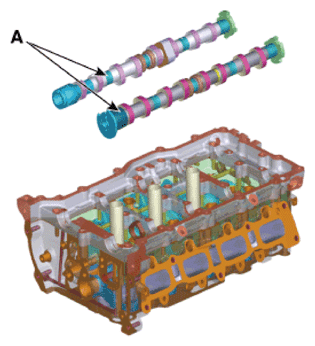

Remove the camshafts (A).

Courtesy of HYUNDAI MOTOR AMERICA
