CVVT and Camshaft Assembly

(Refer to Timing System - "TIMING CHAIN ")

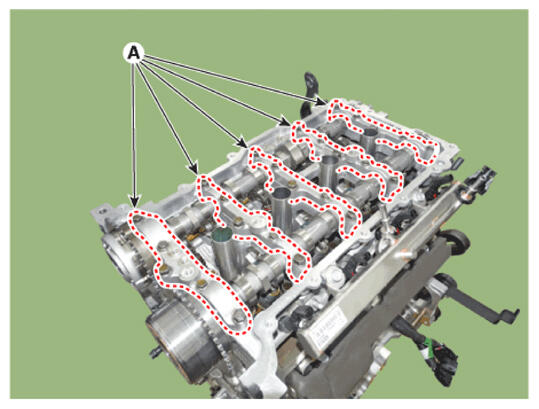

1. Remove the Camshaft bearing cap (A).

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Be careful not to change the position and direction of camshaft bearing caps.
   NOTE:

   • Remove the camshaft bearing caps in the sequence shown.
   Fig 1: Camshaft Bearing Caps Bolts (Loosening Sequence)

   Courtesy of HYUNDAI MOTOR AMERICA
2. Remove the intake/exhaust CVVT and camshaft assembly (A).

   Courtesy of HYUNDAI MOTOR AMERICA
