CVVT and Camshaft Assembly

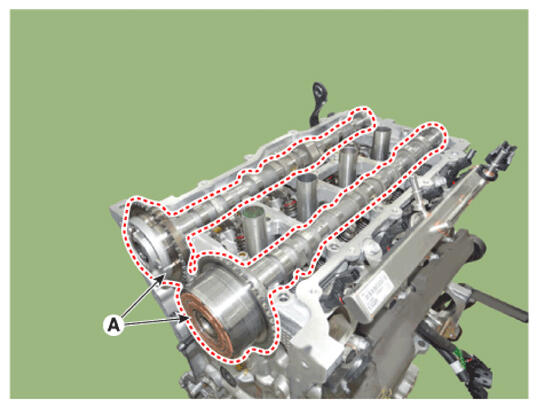

1. Install the intake and exhaust CVVT & camshaft assembly (A).

   Courtesy of HYUNDAI MOTOR AMERICA

   Information

   • When installing the camshaft, apply engine oil to the cam carrier journal and then apply engine oil to the camshaft journal after installing the camshaft.

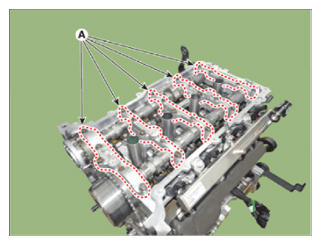

2. Install the camshaft bearing caps (A) and tighten the bolts to the specified torque.

   Tightening torque:  Step 1

   M6: 4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.7 lb-ft)

   M8: 9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)

   Step 2

   M6: 11.7 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.6 - 10.1 lb-ft)

   M8: 18.6 - 22.5 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Be careful not to change the position and direction of camshaft bearing caps.
   NOTE:

   • Install the camshaft bearing caps in the sequence below.

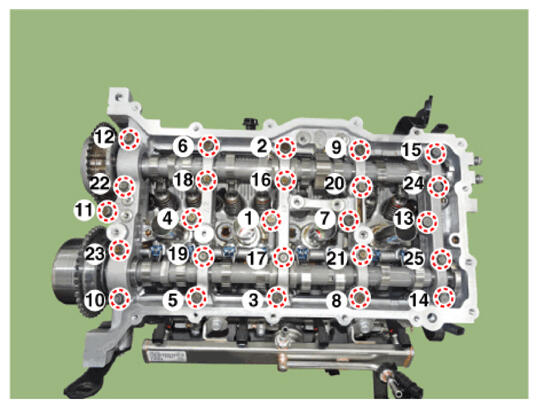

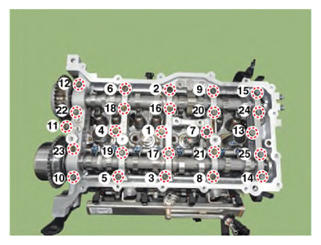

   Fig 1: Camshaft Bearing Caps Bolts (Tightening Sequence)

   Courtesy of HYUNDAI MOTOR AMERICA

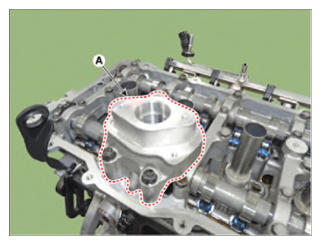

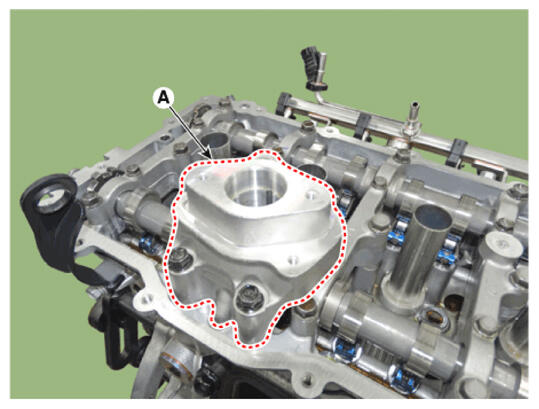

Tightening torque:  18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.3 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
