Oil Pump Chain
- Remove the timing chain.
(Refer to the Timing System - "TIMING CHAIN ")

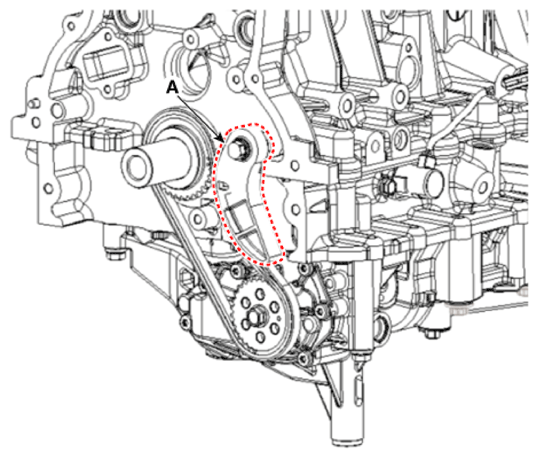

- Remove the oil pump chain tensioner arm (A).
Tightening torque: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

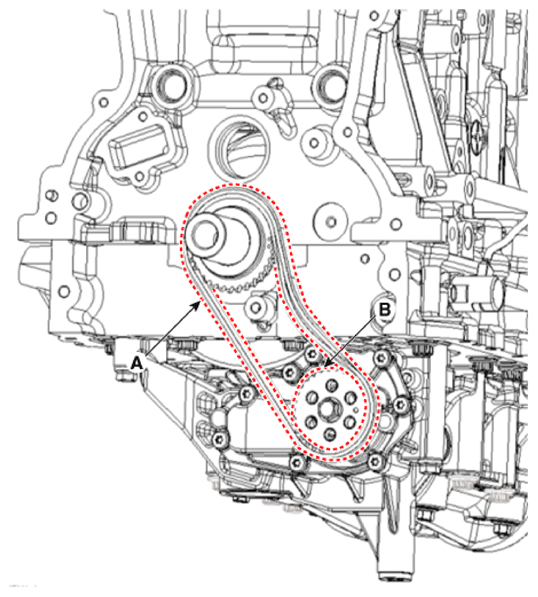

- Remove the oil pump chain (A) with oil pump sprocket (B).
Tightening torque: 19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb-ft)
- Install the other parts in the reverse order of removal.
- Refill with the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")
