Removal And Installation

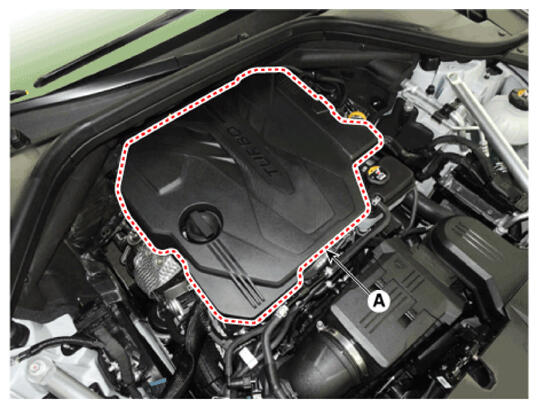

Remove the engine cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

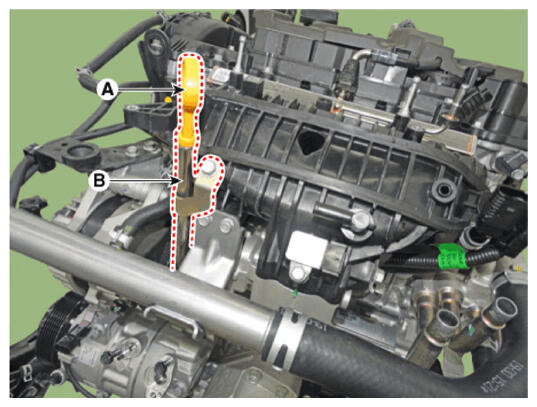

Remove the oil level gauge (A) and then remove the oil level gauge pipe (B).
Tightening torque: 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Do not reuse the O-ring.
- When installing, apply engine oil to the O-ring.
Install in the reverse order of removal.
