Home >> Genesis >> 2024 >> GV70 2.5T >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System - 2.5L >> Water Temperature Control Assembly >> Components And Components Location >> Components

Components And Components Location: Components

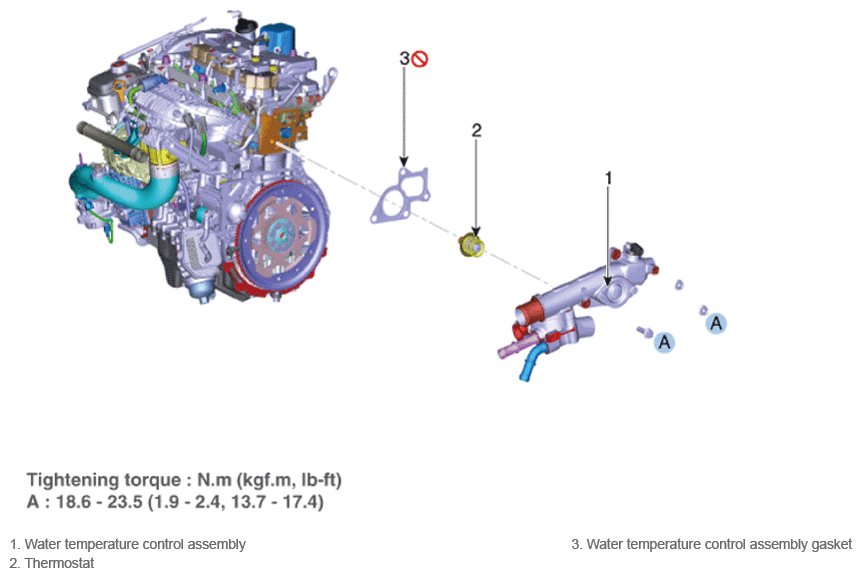

Fig 1: Water Temperature Control Assembly Components Location With Torque Specifications

G16846559

Courtesy of HYUNDAI MOTOR AMERICA
