Components And Components Location: Components

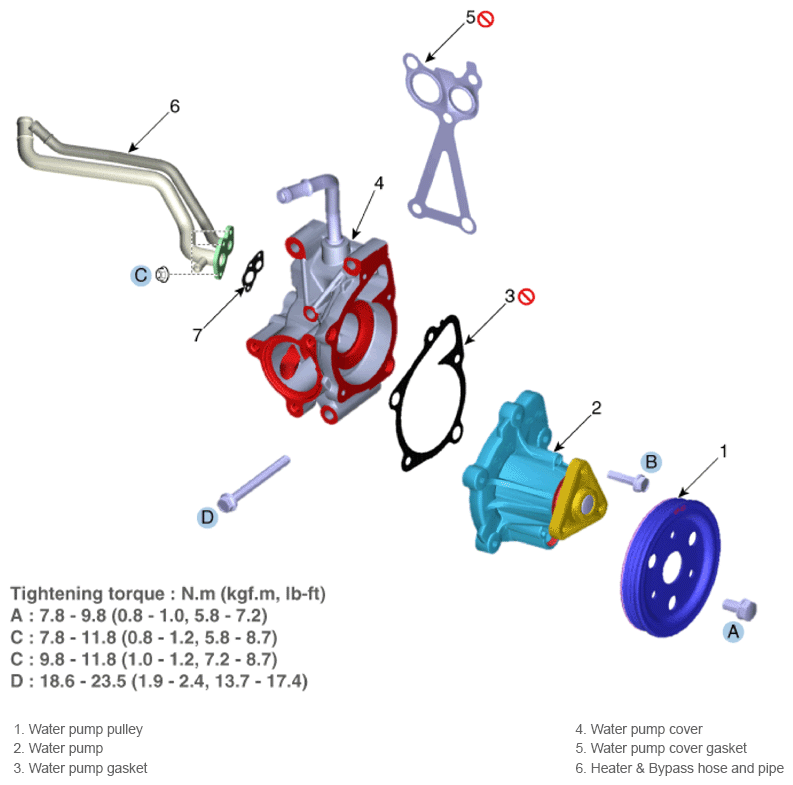

Fig 1: Water Pump Components Location With Torque Specifications (1 Of 2)
G16846539Courtesy of HYUNDAI MOTOR AMERICA

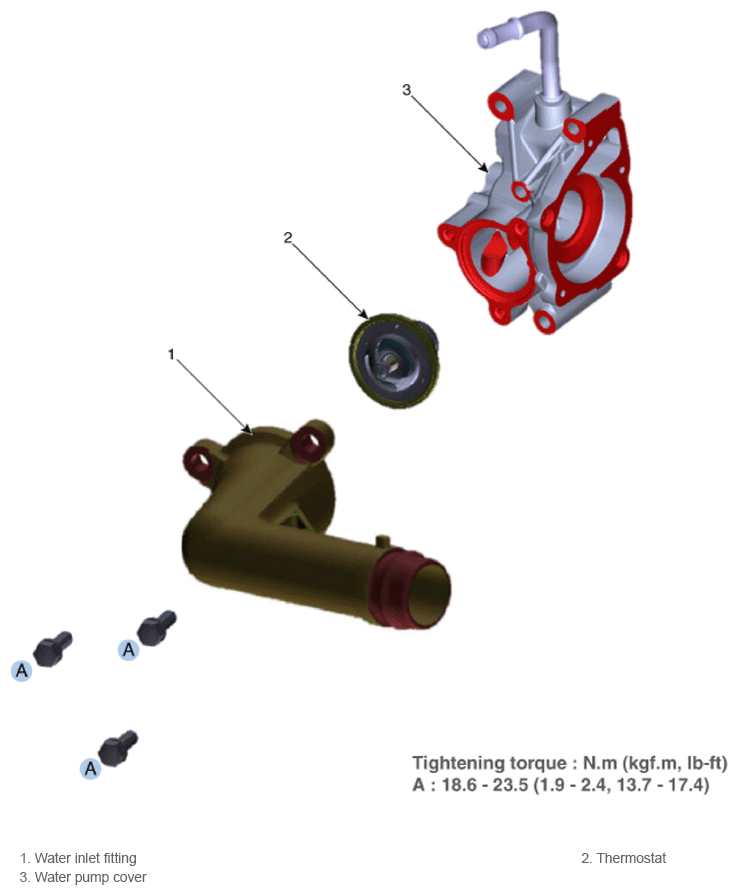

Fig 2: Water Pump Components Location With Torque Specifications (2 Of 2)
G16846540Courtesy of HYUNDAI MOTOR AMERICA
