Water cooled intercooler coolant

  1. Make sure the engine and radiator are cool to the touch.
  2. Remove the engine room front under cover.

    (Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

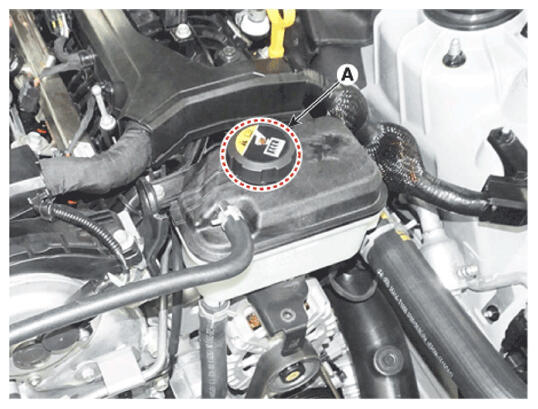

  3. Remove the reservoir tank cap (A).
    G16846501Courtesy of HYUNDAI MOTOR AMERICA

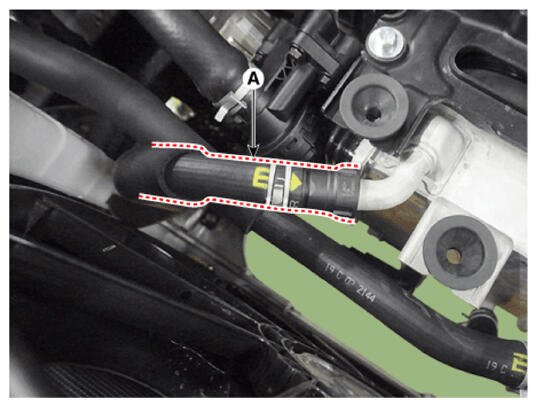

  4. Disconnect the water cooled intercooler outlet hose (A) and then drain the coolant from the water cooled intercooler.
    G16846502Courtesy of HYUNDAI MOTOR AMERICA
