Engine coolant reservoir tank

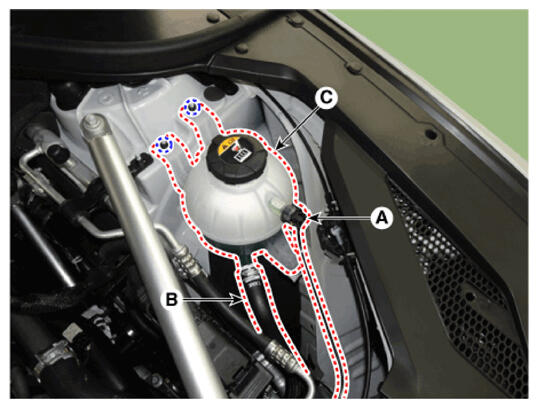

  1. Remove the engine coolant reservoir tank.
    1. Disconnect the degassing hose (A).
    2. Disconnect the reservoir tank water hose (B).
    3. Remove the reservoir tank (C).

      Tightening torque:  7.8 - 11.7 N.m (0.8 - 1.2 kgf.m, 5.7 - 8.6 lb.ft)

      G16846536Courtesy of HYUNDAI MOTOR AMERICA
  2. Install in the reverse order of removal.
