Engine Radiator

  1. Remove the cooling fan assembly.

    (Refer to Cooling System - "COOLING FAN ")

  2. Remove the engine radiator (B) by loosening the mounting bolt of the water-cooled intercooler radiator (A).

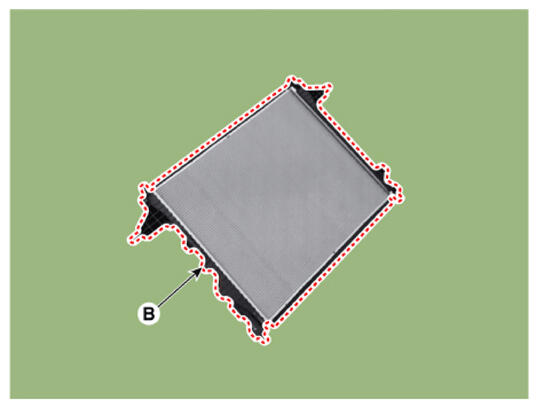

    [Engine Radiator]

    G16846528Courtesy of HYUNDAI MOTOR AMERICA

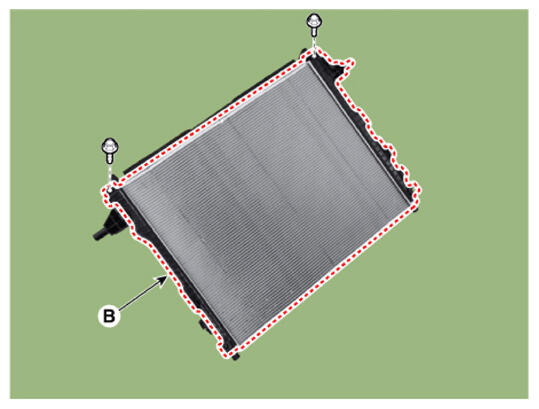

    [Water Cooled Intercooler Radiator]

    G16846529Courtesy of HYUNDAI MOTOR AMERICA
  3. Install in the reverse order of removal.
  4. Fill with engine coolant.

    (Refer to Cooling System - "COOLANT ")

  5. Fill the water cooled intercooler coolant.

    (Refer to Cooling System - "WATER COOLED INTERCOOLER COOLANT ")

  6. Recheck coolant level.
  7. Install the front engine room under cover (A).

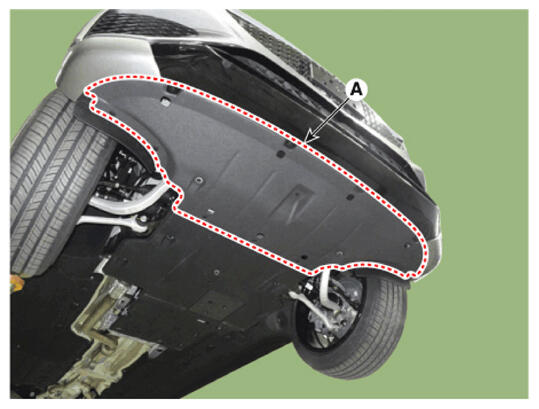

    G16846530Courtesy of HYUNDAI MOTOR AMERICA
