Cooling Fan Motor

  1. Turn ignition switch "OFF" and connect the diagnostic tool to the Data Link Connector.
  2. With the gear shift in P (Park) position and ignition switch "ON" (LED of the Power button illuminates in Red), select the "force drive" function.
  3. Force drive the cooling fan motor.

    Information

    • There are two functions for the fan motor force drive: Low speed and high speed.

    [Fan motor low speed]

    1. Start the "Fan motor low speed" of the force drive function.
      G16846522Courtesy of HYUNDAI MOTOR AMERICA
    2. Force drive by pressing the start button.
      G16846523Courtesy of HYUNDAI MOTOR AMERICA
    3. Visually check the operation of the cooling fan.
    4. Stop the force drive by pressing the stop button.

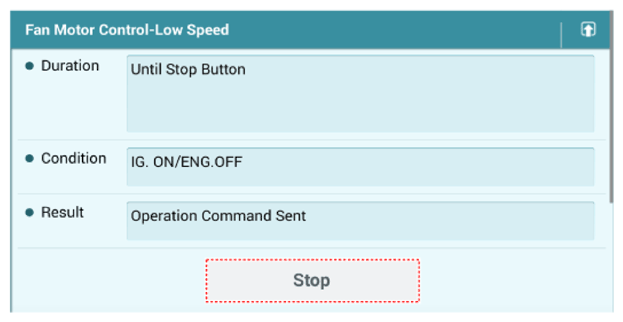

      G16846524Courtesy of HYUNDAI MOTOR AMERICA

    [Fan motor high speed]

    1. Start the "Fan motor high speed" of the force drive function.

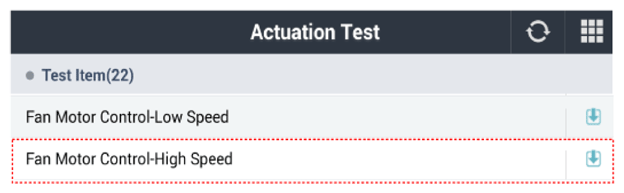

      G16846525Courtesy of HYUNDAI MOTOR AMERICA
    2. Force drive by pressing the start button.

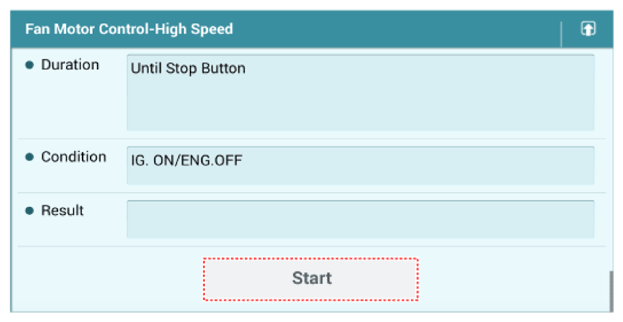

      G16846526Courtesy of HYUNDAI MOTOR AMERICA
    3. Visually check the operation of the cooling fan.
    4. Stop the force drive by pressing the stop button.

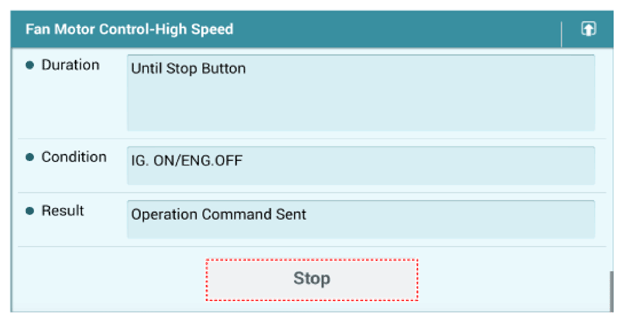

      G16846527Courtesy of HYUNDAI MOTOR AMERICA
