Cooling Fan: Disassembly

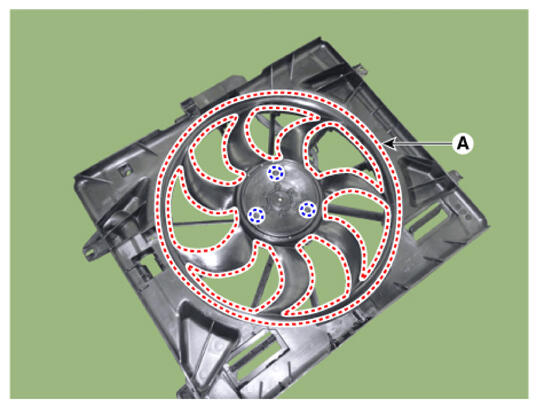

- Remove the cooling fan (A) from the cooling fan shroud.
Tightening torque: 4.5 - 5.0 N.m (0.46 - 0.51 kgf.m, 3.3 - 3.7 lb.ft)

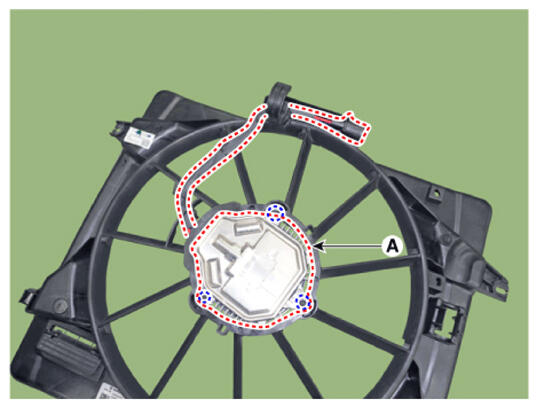

- Disconnect the cooling fan motor connector and then remove the cooling fan motor (A) from the cooling fan shroud.
Tightening torque: 7.0 - 7.5 N.m (0.71 - 0.76 kgf.m, 5.1 - 5.5 lb.ft)
- Assemble in the reverse order of disassembly.
