Replacement and Air Bleeding
WARNING:
- Never remove the reservoir tank cap when the engine is hot. Otherwise, serious scalding could be caused by hot fluid under high pressure escaping from the radiator. Open the reservoir tank cap after engine cools down sufficiently.
- Make sure the engine and radiator are cool to the touch.

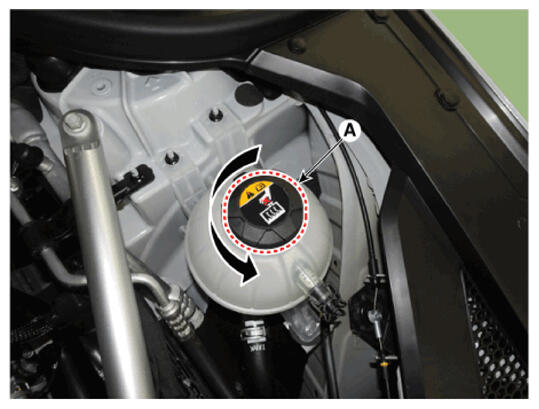

- Remove the reservoir tank cap (A).
- Remove the engine room front under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

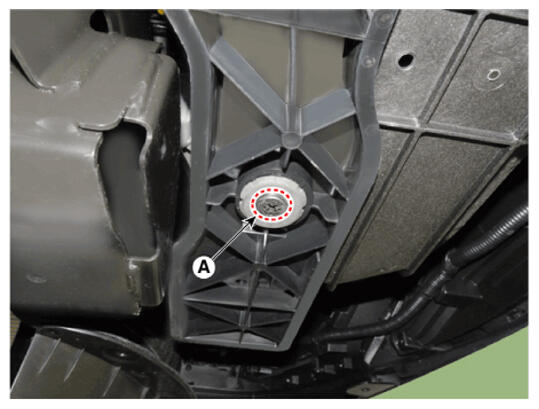

- Drain engine coolant by loosening the drain plug (A).
