Active Air Flap (AAF) Actuator

  1. Remove the front bumper.

    (Refer to Body (Interior and Exterior) - "FRONT BUMPER ASSEMBLY ")

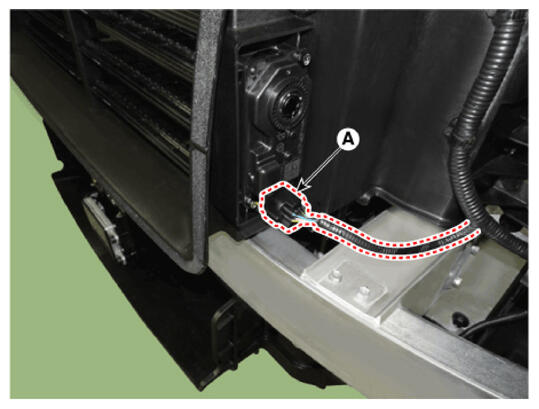

  2. Disconnect the active air flap (AAF) actuator connector (A).
    G16846568Courtesy of HYUNDAI MOTOR AMERICA

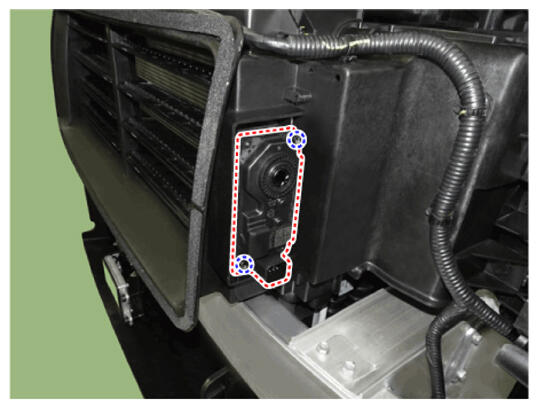

  3. Remove the active air flap (AAF) actuator (A).
    G16846569Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
