Removal And Installation: Removal

Disconnect the negative (-) battery terminal.
Remove the crash pad air vent [LH], [RH].
(Refer to Body - "CRASH PAD AIR VENT ")

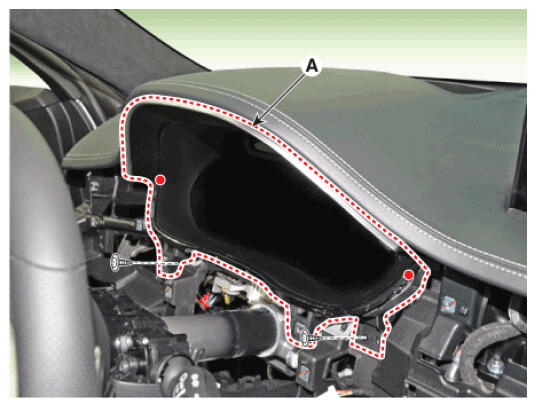

Loosen the mounting screws and remove the cluster fascia panel (A).

Courtesy of HYUNDAI MOTOR AMERICA

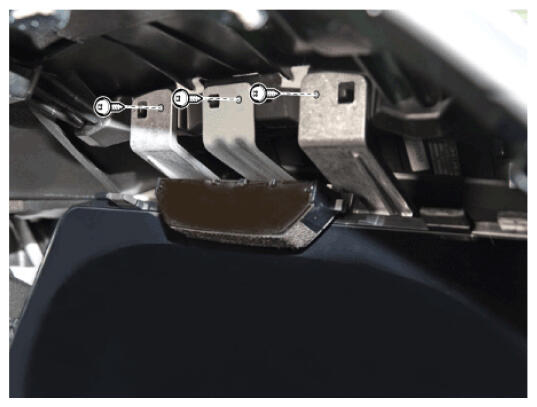

Information

Courtesy of HYUNDAI MOTOR AMERICA

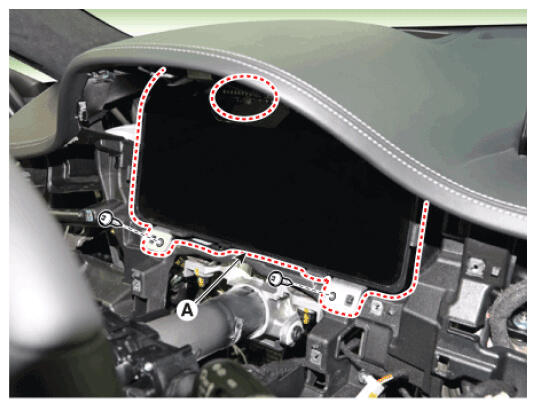

Remove the cluster (A) after loosening mounting screws.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

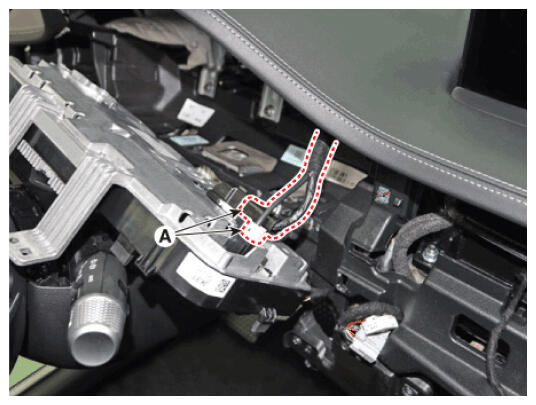

Disconnect the cluster connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
