Removal And Installation: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the instrument cluster.

    (Refer to Indicators And Gauges - "INSTRUMENT CLUSTER ")

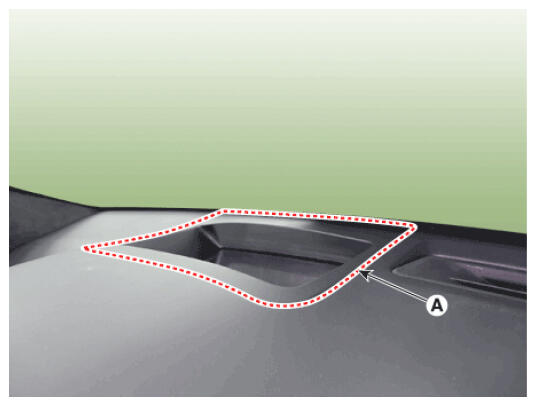

  3. Remove the head up display upper cover (A).
    G16856261Courtesy of HYUNDAI MOTOR AMERICA

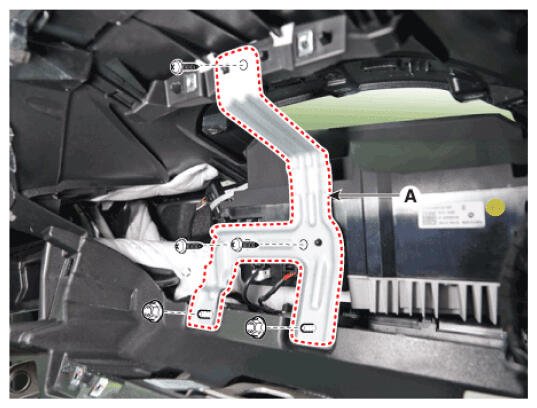

  4. Remove the head up display bracket (A) after loosening nuts and screws.
    G16856262Courtesy of HYUNDAI MOTOR AMERICA

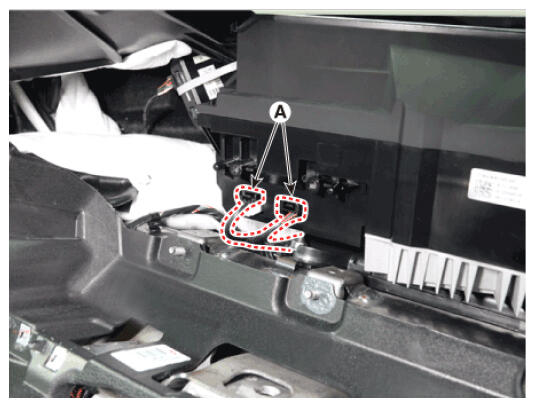

  5. Disconnect the head up display conductor (A).
    G16856263Courtesy of HYUNDAI MOTOR AMERICA

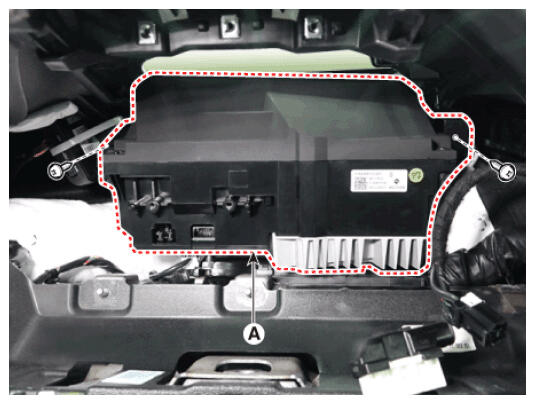

  6. remove the head up display unit (A) after loosening the mounting screws.
    G16856264Courtesy of HYUNDAI MOTOR AMERICA
