Connector And Terminal Information

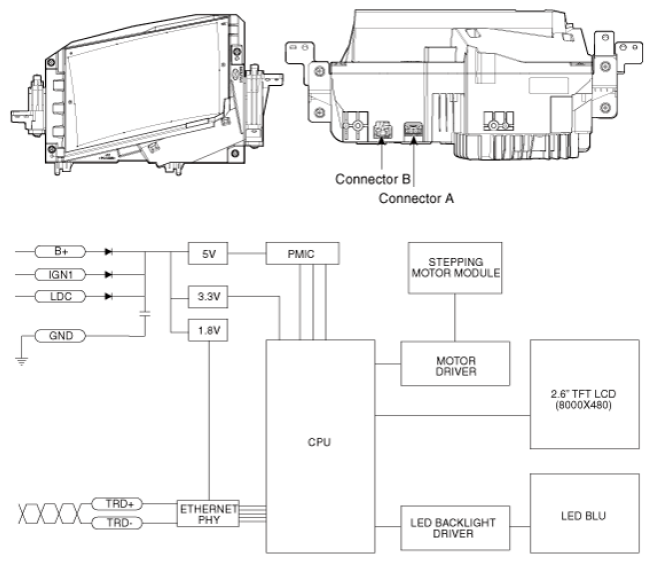

G16856252Courtesy of HYUNDAI MOTOR AMERICA
Connector A No Description
G16856253Courtesy of HYUNDAI MOTOR AMERICA
 1 Ground
2 -
3 -
4 LDC (+)
5 IGN 1
6 Battery (+)
Connector B No Description
G16856254Courtesy of HYUNDAI MOTOR AMERICA
 1 TRD (+)
2 TRD (-)
