[Steering column shroud lower panel]
- Remove the steering column shroud upper panel.
- Remove the crash pad lower panel.
Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

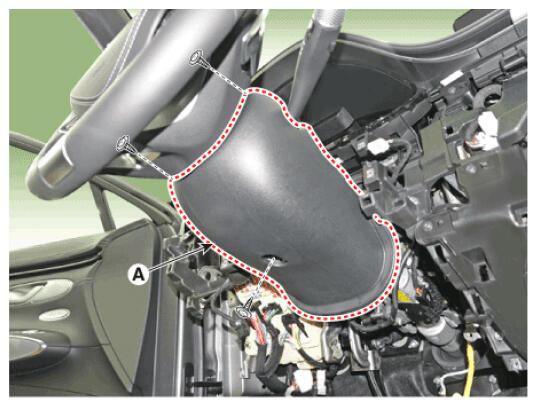

- Loosen the mounting screws by turning the steering wheel to the left and right, and remove the steering column shroud lower panel (A).
- To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin - type retainers).
