Crash Pad Side Cover: Replacement

CAUTION:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

NOTE:

Take care not to bend or scratch the trim and panels.

Remove the front door body side weatherstrip.
(Refer to Front Door - "FRONT DOOR SIDE WEATHERSTRIP ")
Remove the crash pad side cover (A).

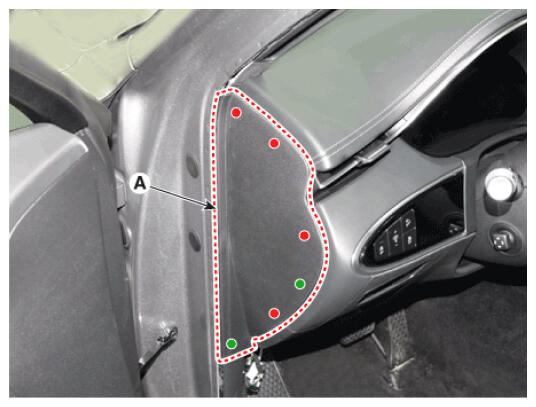

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

Information

Courtesy of HYUNDAI MOTOR AMERICA

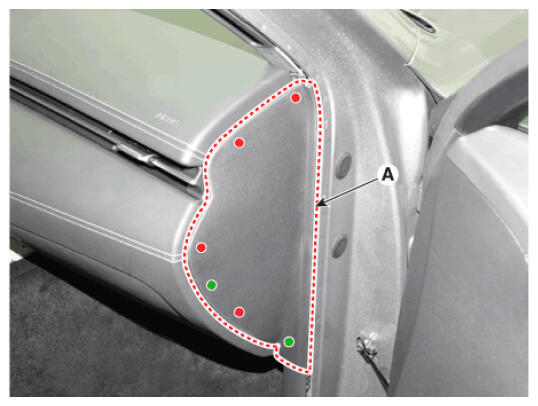

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

Information

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin - type retainers).
