Crash Pad Lower Panel: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to bend or scratch the trim and panels.
- Disconnect the negative (-) battery terminal.
- Remove the crash pad side cover [LH].
Refer to Crash Pad - "CRASH PAD SIDE COVER ")

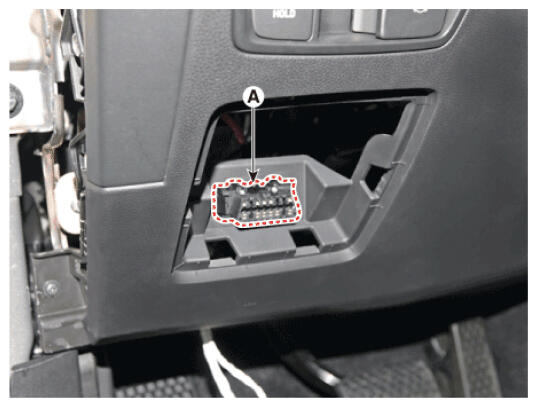

- Separate the diagnostic connector (A).

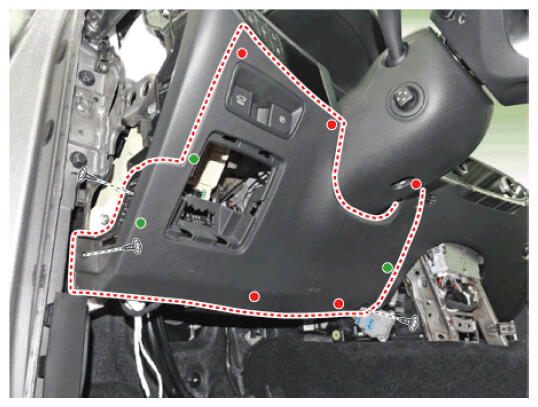

- Loosen the mounting screws, remove the crash pad lower panel (A).
Information

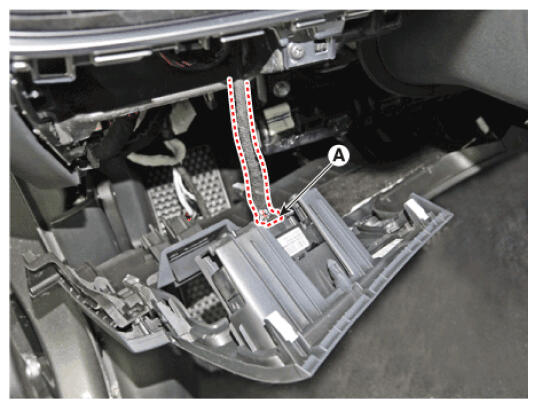

- Disconnect the crash pad lower panel connector (A).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- Make sure the connectors are plugged in properly.
