Crash Pad Garnish: Replacement: [RH]
- Remove the steering column shroud upper panel.
Refer to Crash Pad - "STEERING COLUMN SHROUD PANEL ")
- Remove the crash pad side cover [RH].
Refer to Crash Pad - "CRASH PAD SIDE COVER ")
- Remove the glove box.
Refer to Crash Pad - "GLOVE BOX ")
- Remove the crash pad under cover.
Refer to Crash Pad - "CRASH PAD UNDER COVER ")
- Remove the heater & A/C control unit (DATC).
(Refer to Heating, Ventilation And Air Conditioning - "HEATER & A/C CONTROL UNIT (DATC) ")

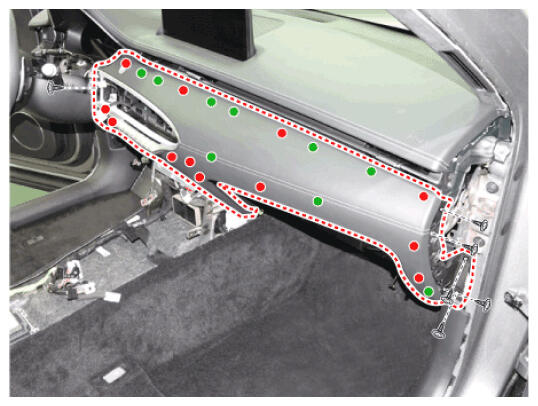

- Loosen the mounting screws, remove the crash pad garnish [RH] (A).
Information

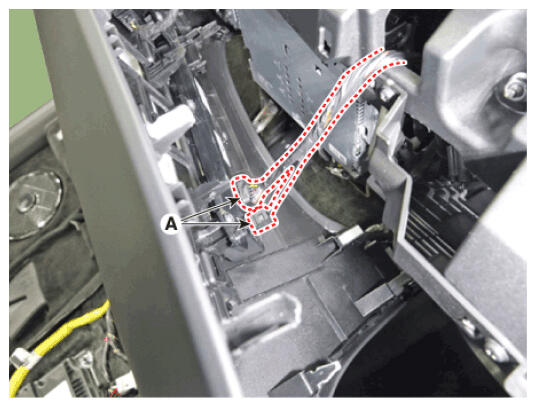

- Disconnect the AVN keyboard assembly connector (A).

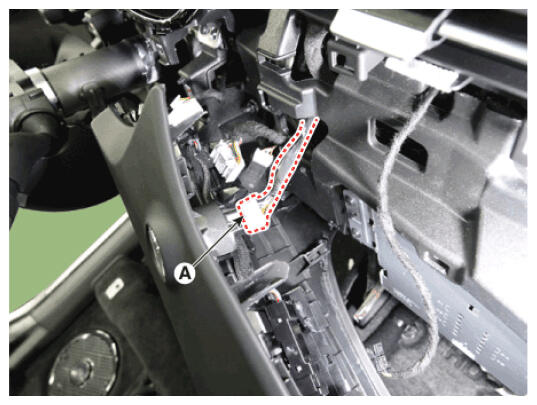

- Disconnect the mood lamp connector (A).

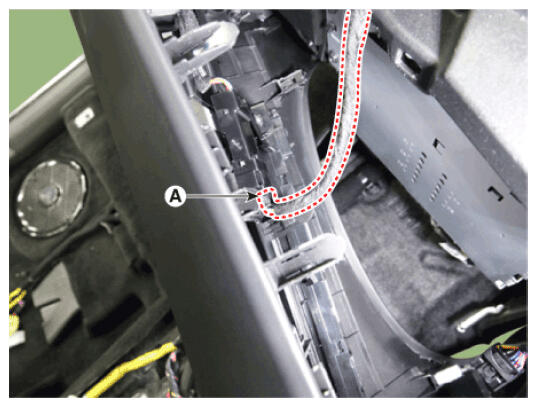

- Disconnect the start button connector (A).

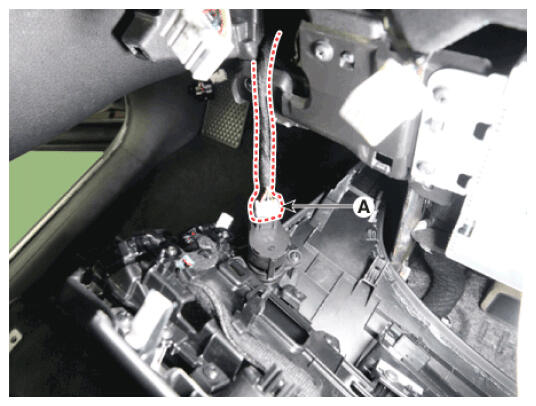

- Disconnect the in-car sensor connector (A).
- To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- Make sure the connectors are plugged in properly.
