Crash Pad Garnish: Replacement: [LH]
- Remove the steering column shroud upper panel.
Refer to Crash Pad - "STEERING COLUMN SHROUD PANEL ")
- Remove the crash pad lower panel.
Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

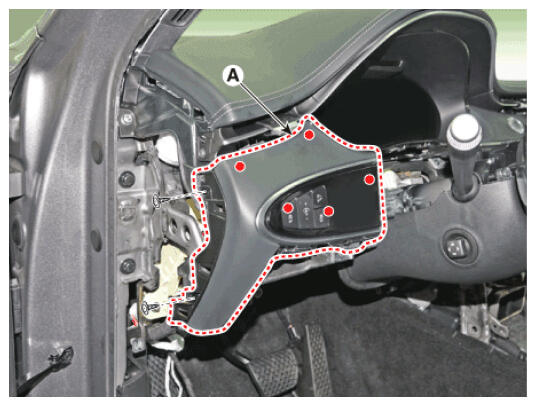

- Loosen the mounting screws, remove the crash pad garnish [LH] (A).
Information

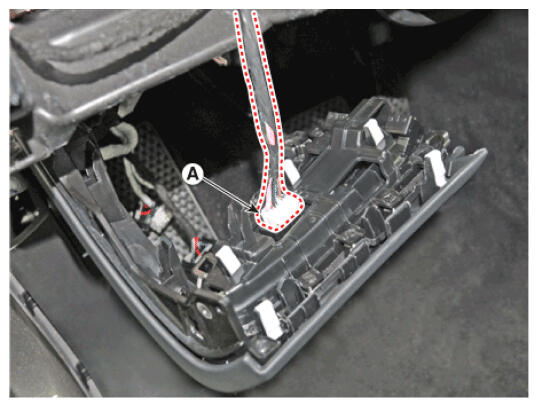

- Disconnect the connector (A).
- To install, reverse the removal procedure.
Information
- Make sure the connectors are plugged in properly.
- Replace any damaged clips (or pin-type retainers).
