Crash Pad Center Panel: Replacement: [RH]
- Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
- Remove the crash pad garnish [RH].
(Refer to Crash Pad - "CRASH PAD GARNISH ")
- Remove the crash pad under cover.
Refer to Crash Pad - "CRASH PAD UNDER COVER ")
- Remove the AVN head unit.
(Refer to Body Electrical System - "AVN HEAD UNIT ASSEMBLY ")

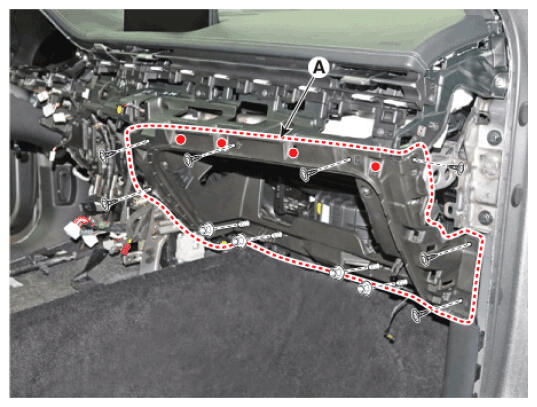

- Loosen the mounting screws and nuts, remove the crash pad center panel [RH] (A).
Information

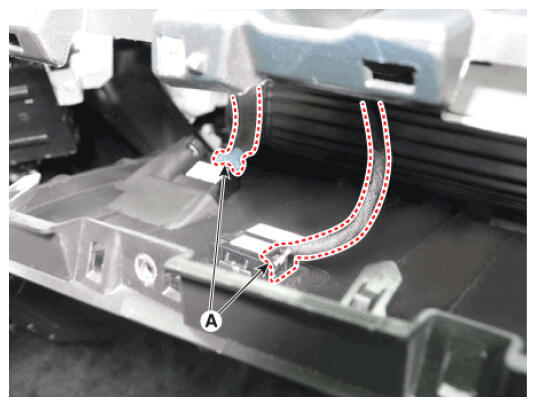

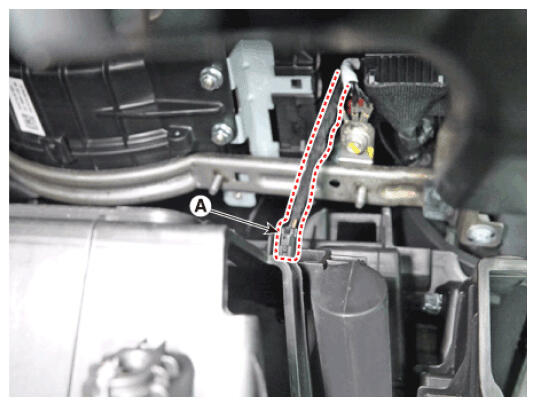

- Disconnect the crash pad center panel connectors (A).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- Make sure the connector are connected in properly.
