Cluster Fascia Panel: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to bend or scratch the trim and panels.
- Disconnect the negative (-) battery terminal.
- Remove the crash pad air vent [LH, RH].
Refer to Crash Pad - "CRASH PAD AIR VENT ")

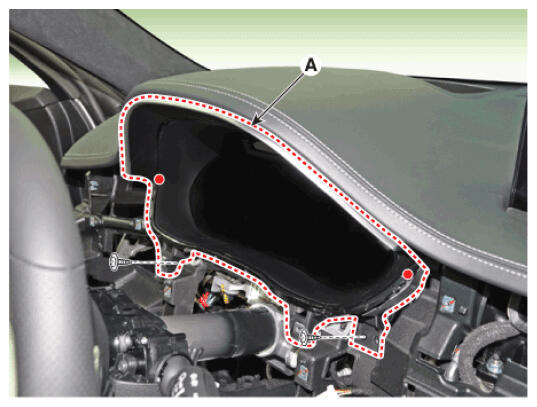

- Loosen the mounting screw, remove the cluster fascia panel (A).
Information
- To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
