Wiring Harness Ground State Inspection

NOTE:
  • Ground state
  • Mounting bolt tightening state (Chassis)
  • Mounting bolt tightening state (Engine)
  • Check the status of ground fault by chassis paint
G16846693Courtesy of HYUNDAI MOTOR AMERICA
G16846694Courtesy of HYUNDAI MOTOR AMERICA

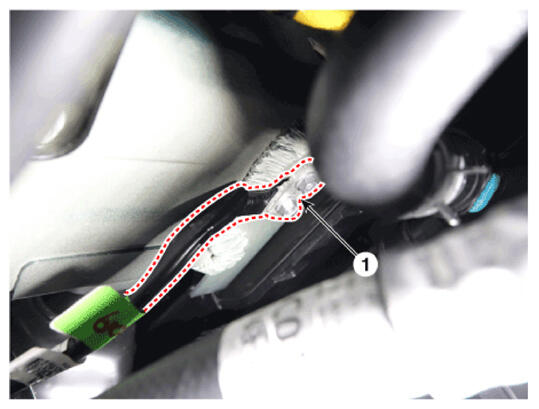

  1. Engine ground (Engine ↔ Chassis)

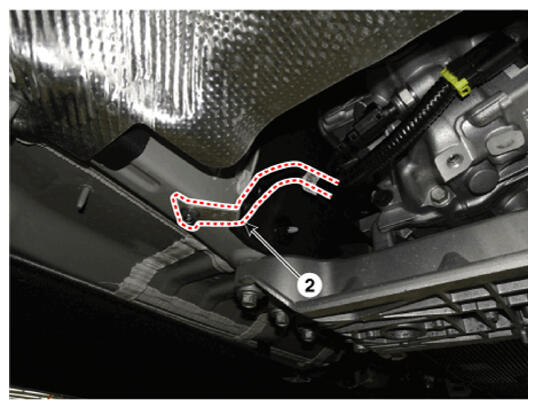

  2. Transaxle ground (Transaxle - Chassis)
    NOTE:
    • Check the ground point.

      (Refer to ETM Harness Layout - "Ground Point")
