DC DC Converter: Removal: [200W]
- Turn the ignition switch OFF and disconnect the battery (-) terminal.
- Remove the steering column module.
(Refer to Steering System - "STEERING COLUMN MODULE (SCM) ")

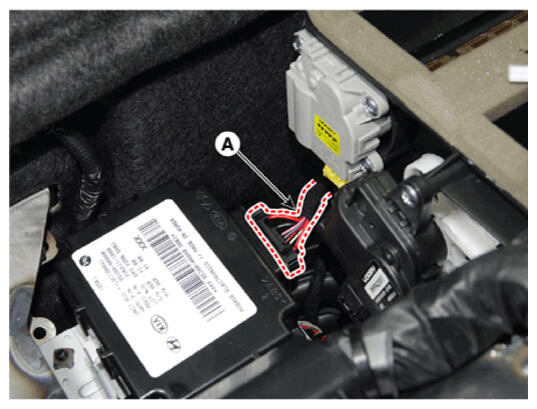

- Disconnect the DC/DC converter connector (A).

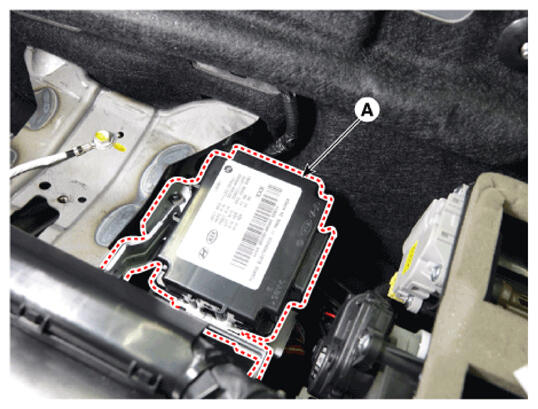

- Remove the DC/DC converter (A).
