Rear Propeller Shaft: Installation

  1. To install, reverse the removal procedures.
CAUTION:

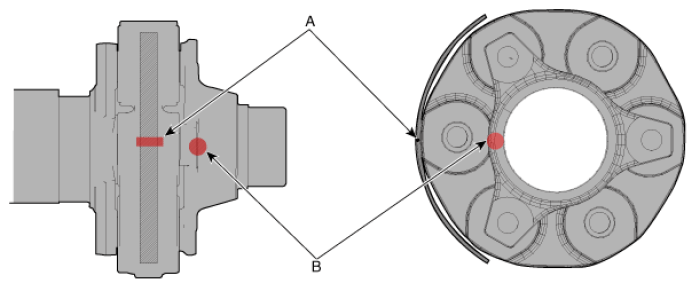

  • Install so that the marking (A) of the transfer or rear differential carrier flange falls within the range of the propeller shaft marking (B).
    G16854372Courtesy of HYUNDAI MOTOR AMERICA
