Propeller Shaft Runout

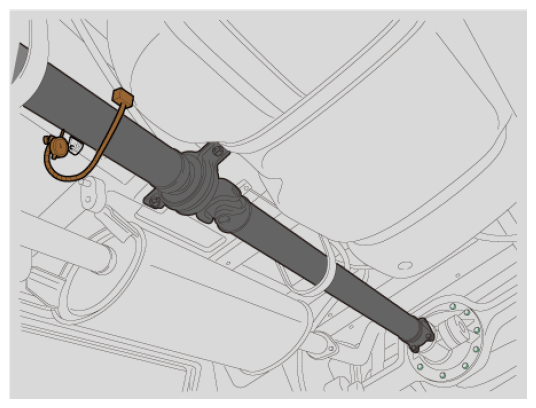

  1. Turn the propeller shaft slowly and check the runout. Repeat this procedure for the other propeller shaft.

    Front Propeller Shaft Runout:  0.3 mm (0.0118 in.)

G16854365Courtesy of HYUNDAI MOTOR AMERICA
