Inspect Rubber Coupling

  1. Check the front and rear flexible couplings for cracks or damage.

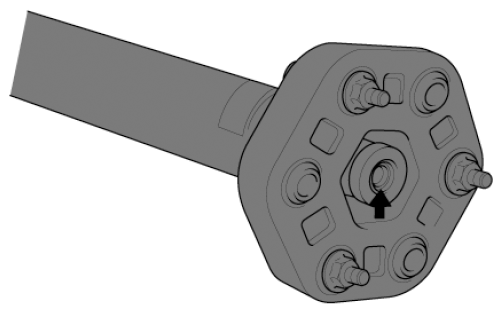

  2. Inspect the flexible coupling centering bushing.
G16854363Courtesy of HYUNDAI MOTOR AMERICA
