Front Propeller Shaft: Installation

To install, reverse the removal procedures.

NOTE:

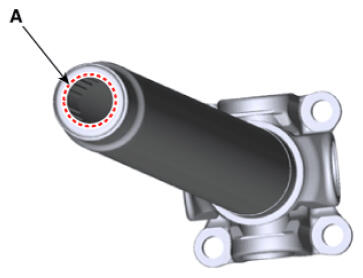

Before installing the front propeller shaft, apply grease on the spline surface and then install it.

Lubricants: PSHF-2 (MS511-64)

Quantity: 2.0 ~ 4.0g
