Components And Components Location: Components

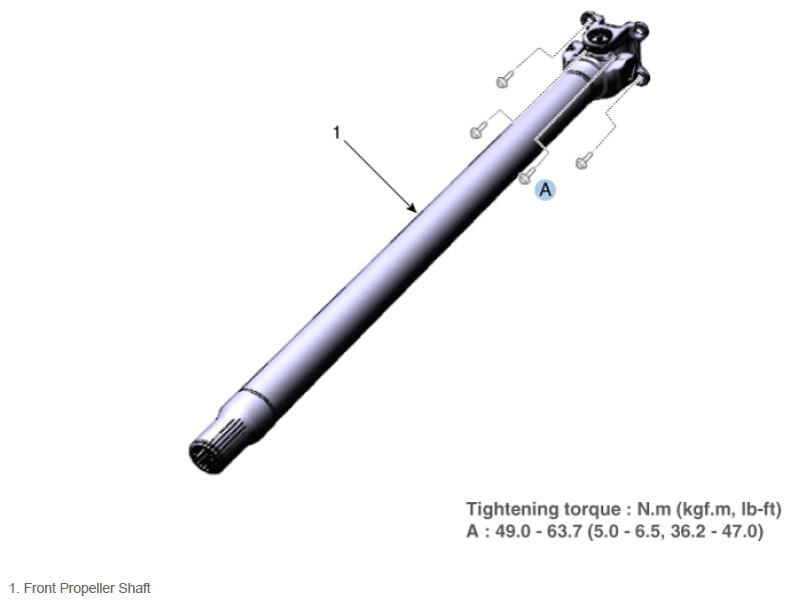

Fig 1: Front Propeller Shaft Components Location With Torque Specifications

G16854356

Courtesy of HYUNDAI MOTOR AMERICA
