Oil Temperature Sensor: Removal
- Remove the Electronic Limited Slip Differential (E-LSD).
(Refer to Electronic Limited Slip Differential System - "ELECTRONIC LIMITED SLIP DIFFERENTIAL (E-LSD) ")

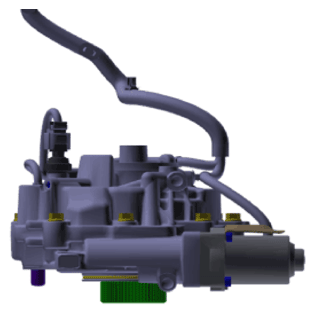

- Tilt the removed Electronic Limited-Slip Differential (E-LSD) to 90° as shown in the below illustration.CAUTION:
- Keep going 90° state during remove (install) the oil temperature sensor.

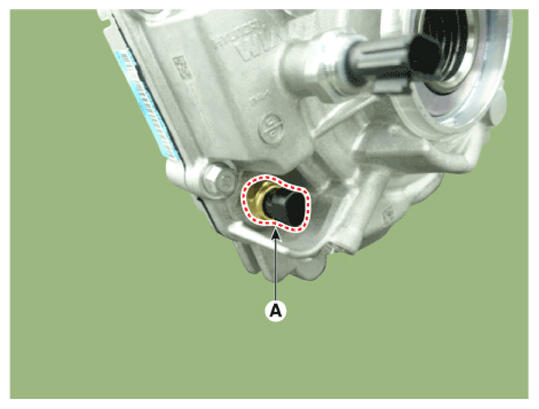

- Remove the oil temperature sensor (A).
Tightening torque:
14.5 - 17.5 N.m (1.48 - 1.78 kgf.m, 10.7 - 12.9 lb-ft)
