Oil Pressure Sensor: Removal
- Remove the Electronic Limited Slip Differential (E-LSD).
(Refer to Electronic Limited Slip Differential System - "ELECTRONIC LIMITED SLIP DIFFERENTIAL (E-LSD) ")

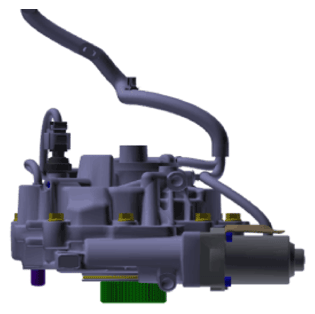

- Tilt the removed Electronic Limited-Slip Differential (E-LSD) to 90° as shown in the below illustration.CAUTION:
- Keep going 90° state during remove (install) the oil pressure sensor.

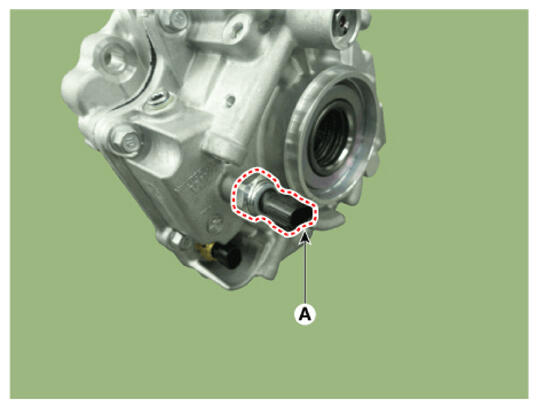

- Remove the oil pressure sensor (A).
Tightening torque:
11.0 - 14.9 N.m (1.12 - 1.52 kgf.m, 8.1 - 11.0 lb-ft)
