Oil Hydraulic Motor (Actuator): Removal

Remove the Electronic Limited Slip Differential (E-LSD).
(Refer to Electronic Limited Slip Differential System - "ELECTRONIC LIMITED SLIP DIFFERENTIAL (E-LSD) ")
Tilt the removed Electronic Limited-Slip Differential (E-LSD) to 45° as shown in the below illustration.
CAUTION:
- Keep going 45° state during remove (install) the oil hydraulic motor.
Courtesy of HYUNDAI MOTOR AMERICA

Loosen the bolt and then remove the oil hydraulic motor (A).

Tightening torque:

11.2 - 11.4 N.m (1.14 - 1.16 kgf.m, 8.2 - 8.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

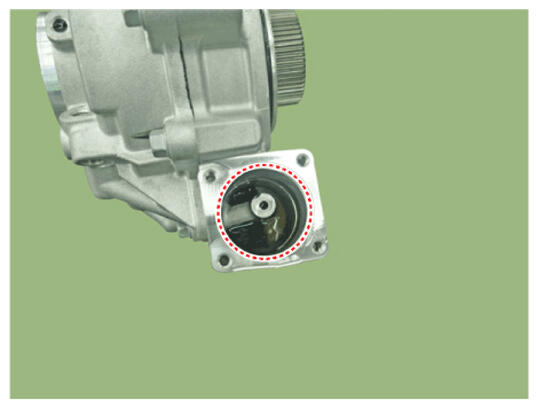

CAUTION:

Remove the hydraulic motor after dropping residual oil as much as possible inside the coupling. (abut 5 - 10 sec)
