Removal And Installation
- Turn ignition switch OFF and disconnect the negative (-) battery cable.CAUTION:
- When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, fuel filter, fuel tank, canister).
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
- When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, fuel filter, fuel tank, canister).
- Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
- Remove the rear wheel and tire.
(Refer to Suspension System - "WHEEL ")

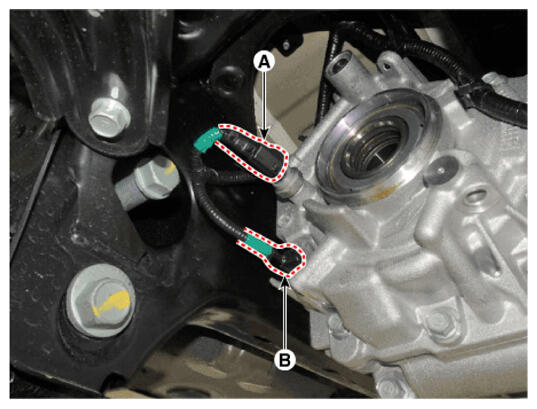

- Disconnect the oil pressure sensor connector (A) and oil temperature sensor connector (B).

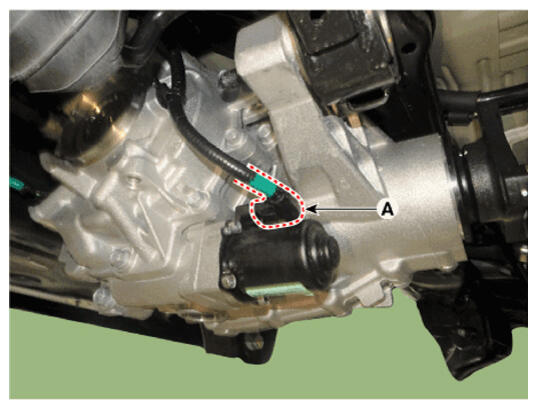

- Disconnect the oil hydraulic motor connector (A).

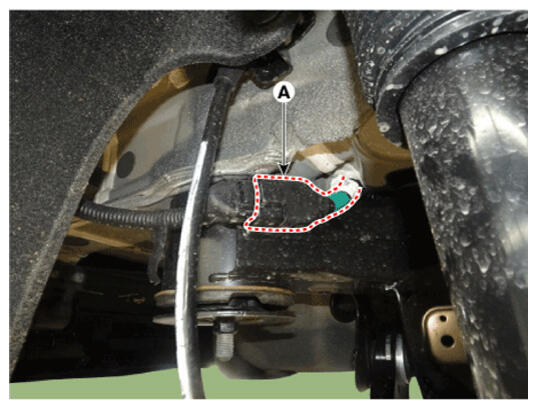

- Disconnect the main wiring connector (A).
- Remove the extension wiring after removing all the clips attached to the rear cross member.
- To install, reverse the removal procedures.CAUTION:
- Pay attention to the direction of the connector during assembly.
- Assemble completely with the counter connector.
(Incomplete assembly may cause removal of the connector while driving.)
- Remove any foreign matter on the connector pin before assembly.
