Rear Differential Carrier: Installation

Install in the reverse order of removal.

CAUTION:

Mark the location and direction of bolt and washer before removing the rear differential carrier.

CAUTION:

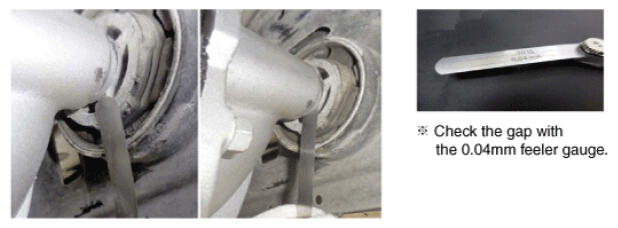

After reinstalling the rear differential carrier, make sure to check whether there is a gap between the carrier cover and the bush protrusion. If there is a gap, the carrier and the bush may not be aligned properly. Therefore, be sure to check the alignment state and then reinstall them.

Courtesy of HYUNDAI MOTOR AMERICA

Check the alignment.
(Refer to Suspension System - "ALIGNMENT ")
