Removal And Installation

CAUTION:

When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, fuel filter, fuel tank, canister).
(Refer to General Information - "LIFT AND SUPPORT POINTS ")

Remove the front cross member.
(Refer to Suspension System - "FRONT CROSS MEMBER ")
Remove the front drive shaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

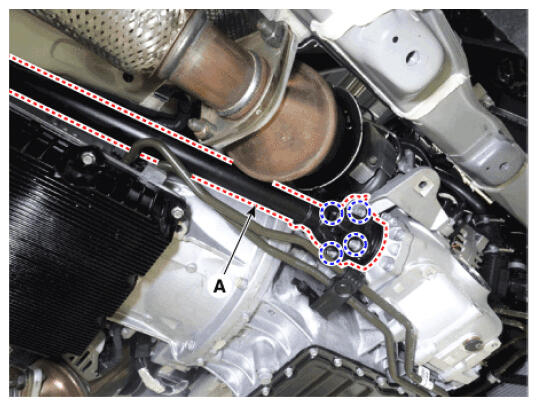

Remove the front propeller shaft (A) from the front differential assembly after loosening the mounting bolts.
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

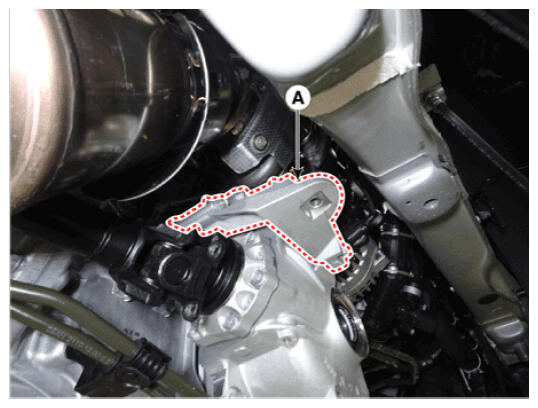

Remove the engine mounting bracket (A).
Tightening torque:

49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.1 - 43.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

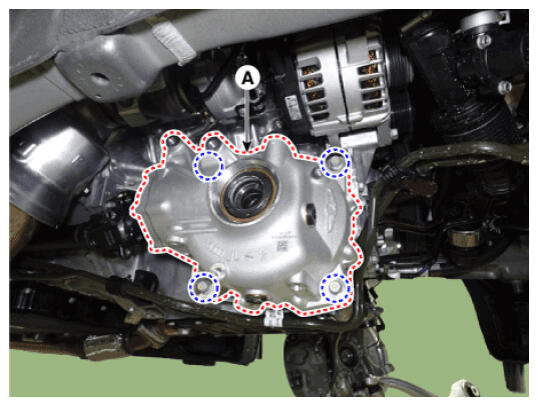

Remove the front differential (A) after loosening the mounting bolts.
Tightening torque:

58.8 - 63.7 N.m (6.0 - 6.5 kgf.m, 43.4 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedures.
Check the alignment.
(Refer to Suspension System - "ALIGNMENT ")
