Removal And Installation
CAUTION:
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
- When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, fuel filter, fuel tank, canister).
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
- Loosen the rear wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
- Remove the rear wheel and tire.
(Refer to Suspension System - "WHEEL ")
- Remove the rear axle assembly.
(Refer to Driveshaft and axle - "REAR AXLE ASSEMBLY ")

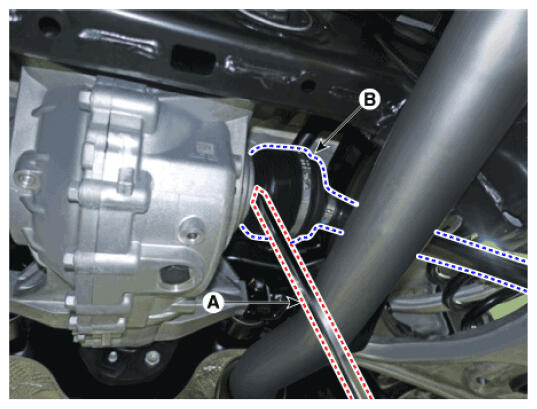

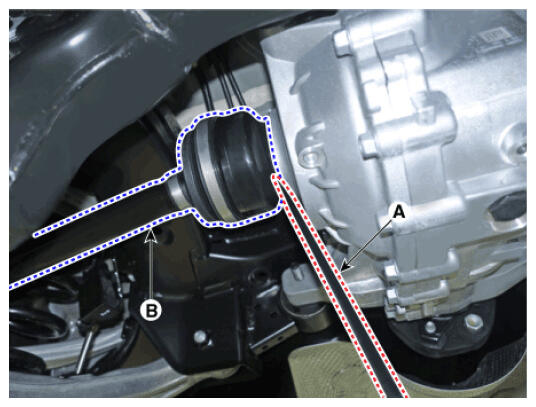

- Remove the rear drive shaft (B) from the rear differential carrier by using the pry bar (A).
[LH]
[RH]
NOTE:- Replace the rear driveshaft with an assembly unit instead of disassembling it.
- Do not insert the pry bar too deep, as this may cause damage to the oil seal.
- Do not pull the driveshaft by excessive force it may cause components inside the joint kit to dislodge resulting in a torn boot or a damaged bearing.
- Plug the hole of the transaxle case with the oil seal cap to prevent contamination.
- Support the driveshaft properly.
- When removing the differential carrier, first remove the drive shaft.
- Do not allow the driveshaft to be bent forcibly or drooped by the loads of other components such as axle, differential and etc.

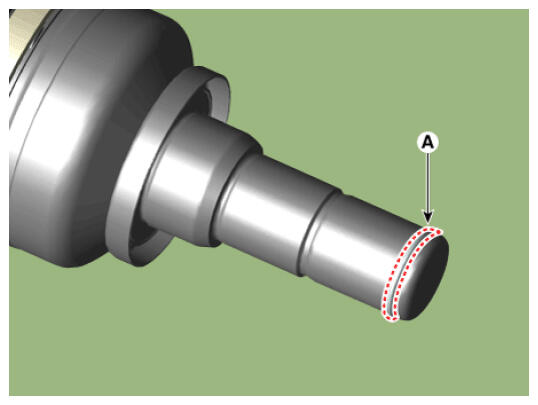

- Replace the clip (A) whenever the driveshaft is removed from the differential carrier.

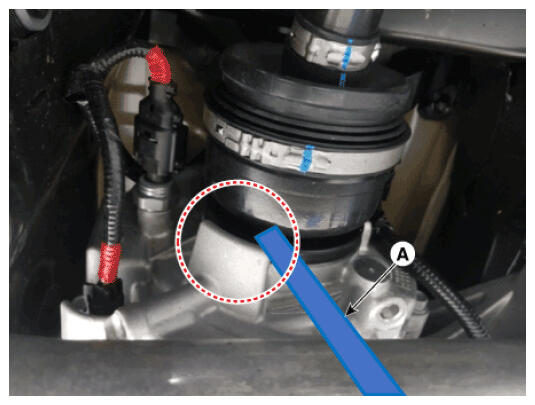

- In case of vehicles equipped with the E-LSD, it is recommended to place the fry bar (A) on the stopper of E-LSD so that the stopper acts as a fulcrum when removing the RH driveshaft.
- To install, reverse the removal procedures.
- Check the alignment.
(Refer to Suspension System - "ALIGNMENT ")
